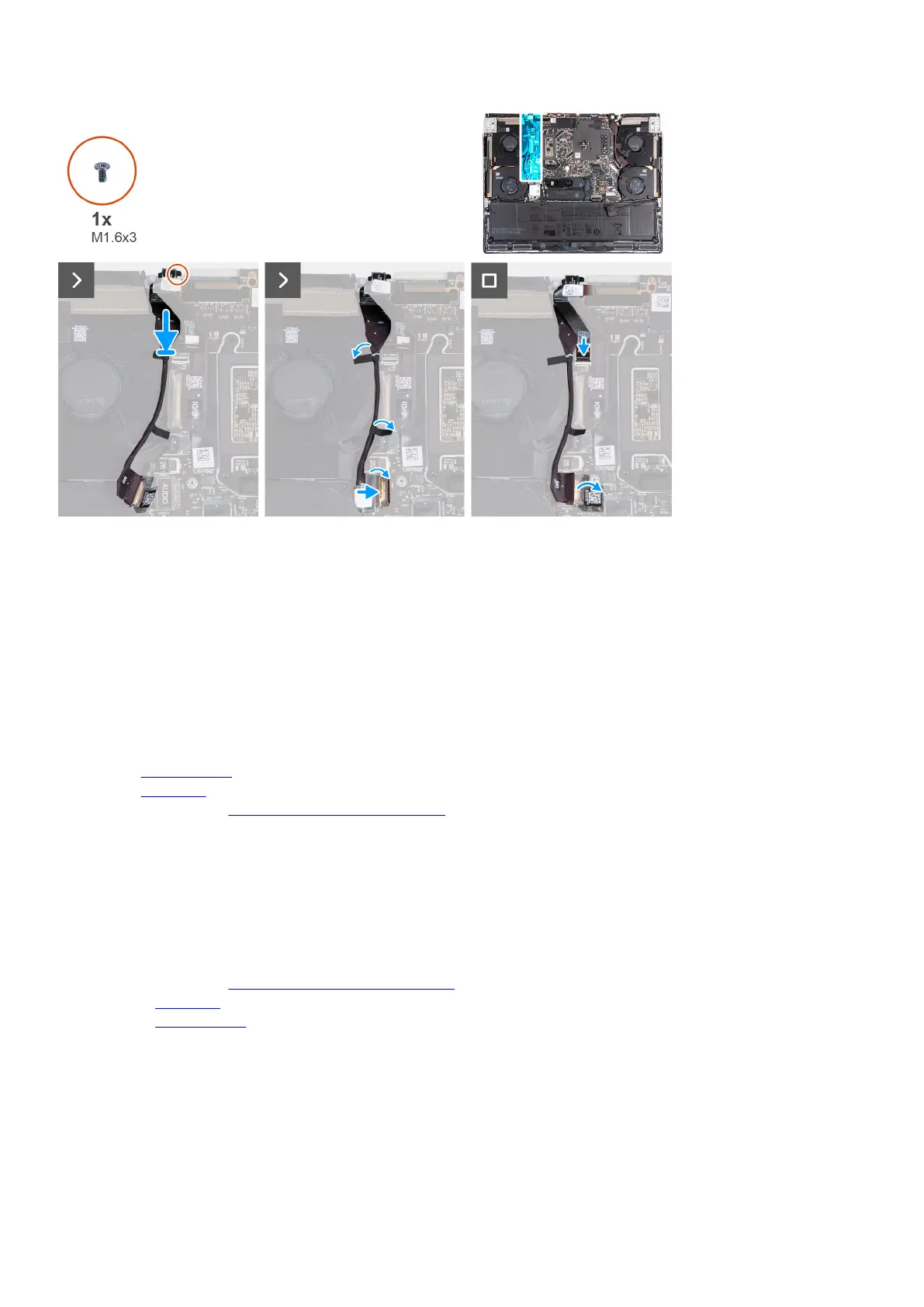

Steps
1. Align and place the headset port into the slot on the palm-rest and keyboard assembly.
2. Replace the screw (M1.6x3) that secures the headset port to the palm-rest and keyboard assembly.
3. Adhere the tape that secures the headset-port cable to the fan and heat-sink assembly.
4. Connect the headset-port cable to the system board.
5. Slide the I/O-board cable into the connector on the system board and close the latch to secure the cable.
6. Adhere the tape that secures the I/O-board cable to the system board.
7. Connect the microSD-card reader cable from the system board.
Next steps
1. Install the
rear I/O-cover.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
microSD-card reader
Removing the microSD-card reader
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the
rear I/O-cover.
About this task
The following image(s) indicate the location of the microSD-card reader and provides a visual representation of the removal
procedure.
66
