Steps
1. Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the wireless card that is supported by your computer.
Table 2. Antenna-cable color scheme
Connectors on the
wireless card
Antenna-cable color Silkscreen marking
Main White MAIN △ (white triangle)
Auxiliary Black AUX ▲ (black triangle)
2. Align the notch on the wireless card with the tab on the wireless-card slot and insert the wireless card at an angle into the
wireless-card slot.
3. Align the screw hole on the wireless-card bracket with the screw hole on the wireless card and palm-rest and keyboard assembly.
4. Replace the screw (M2x3) that secures the wireless-card bracket to the wireless card and the palm-rest and keyboard assembly.

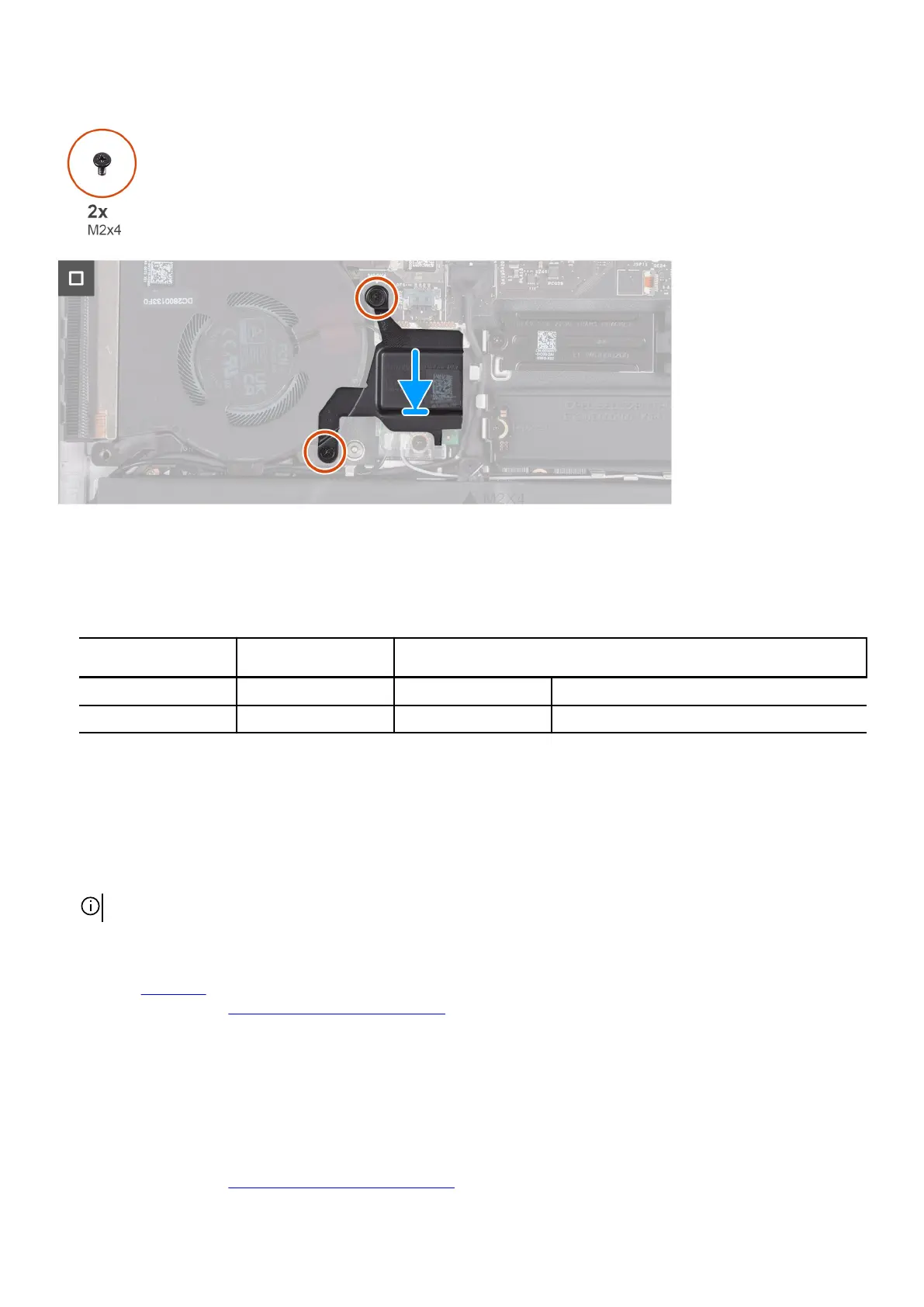

5. Align the screw hole on the wireless card thermal shield with the screw hole on the palm-rest and keyboard assembly.
6. Replace the two screws (M2x4) that secures the wireless card thermal shield to the wireless card and palm-rest and keyboard
assembly.
NOTE: The thermal shield is applicable for computers shipped with certain configurations only.
Next steps
1. Install the
base cover.
2. Follow the procedure in
After working inside your computer.
Rear-I/O cover
Removing the rear I/O-cover
Prerequisites
1. Follow the procedure in
Before working inside your computer.
25
