11. Follow the procedure in After working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the
2230 solid-state drive or 2280 solid-state drive, as applicable.
5. Remove the wireless card.
6. Remove the rear I/O-cover.
7. Remove the processor fan.
8. Remove the graphics-card fan.
9. Remove the
power-adapter port.
10.Follow the procedure from step 1 to step 19 in Removing the system board.
NOTE: The system board can be removed and installed along with the heat sink. This simplifies the removal and installation
procedure and avoids breaking the thermal bond between the system board and heat sink.
About this task

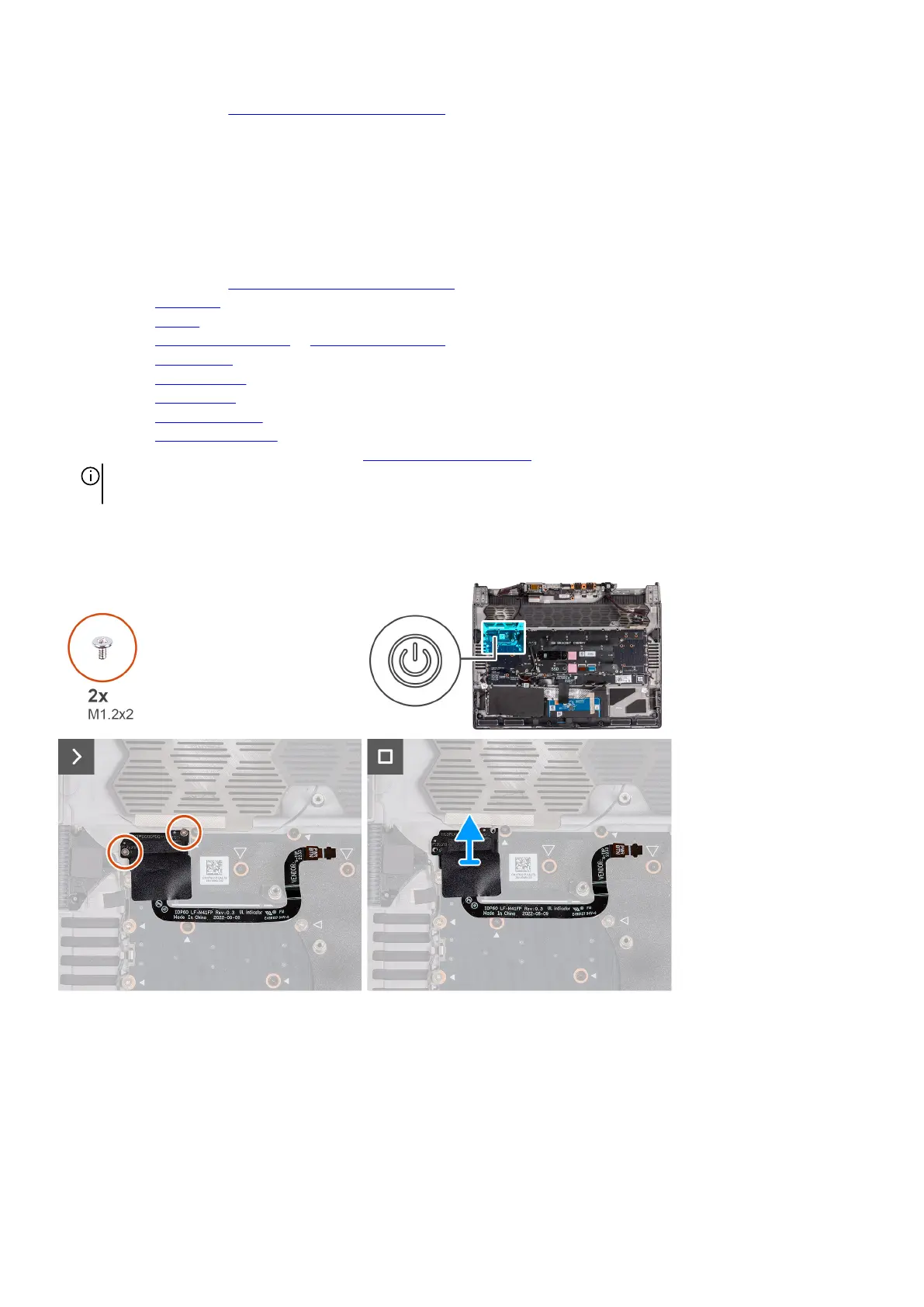

The following image(s) indicate the location of the power button and provides a visual representation of the removal procedure.
Steps
1. Remove the two (M1.2x2) screws that secure the power button to the palm-rest and keyboard assembly.
2. Lift the power button, along with its cable, off the palm-rest and keyboard assembly.
