Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

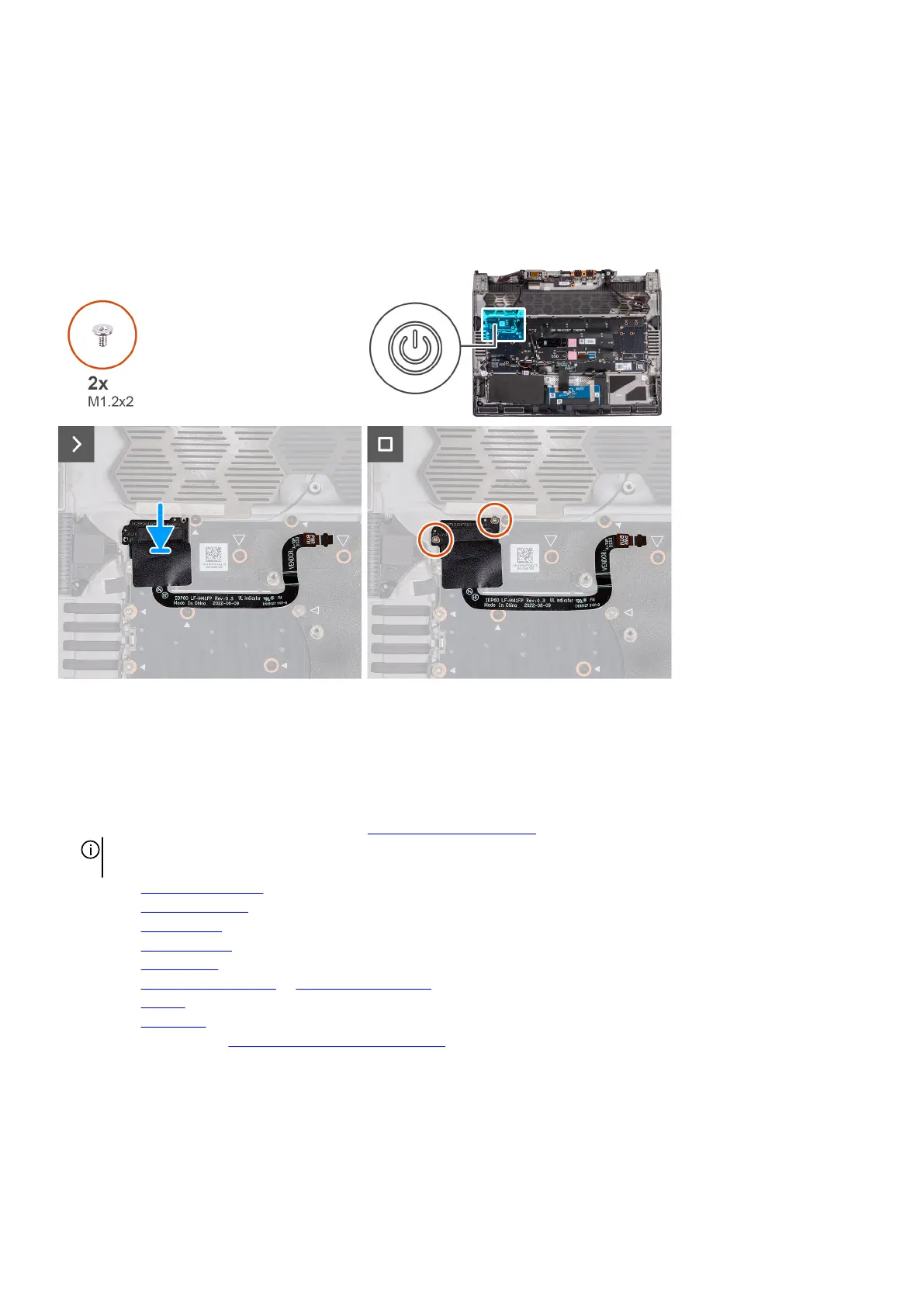

The following image(s) indicate the location of the power button and provides a visual representation of the installation procedure.
Steps
1. Align and place the power button, along with its cable, into the slot on the palm-rest and keyboard assembly.
2. Replace the two screws (M1.2x2) that secure the power button to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure from step 5 to step 22 in Replacing the system board.
NOTE: The system board can be removed and installed along with the heat sink. This simplifies the removal and installation
procedure and avoids breaking the thermal bond between the system board and heat sink.
2. Install the power-adapter port.
3. Install the graphics-card fan.
4. Install the
processor fan.
5. Install the rear I/O-cover.
6. Install the wireless card.
7. Install the 2230 solid-state drive or 2280 solid-state drive, as applicable.
8. Install the battery.
9. Install the base cover.
10.Follow the procedure in After working inside your computer.
