Steps

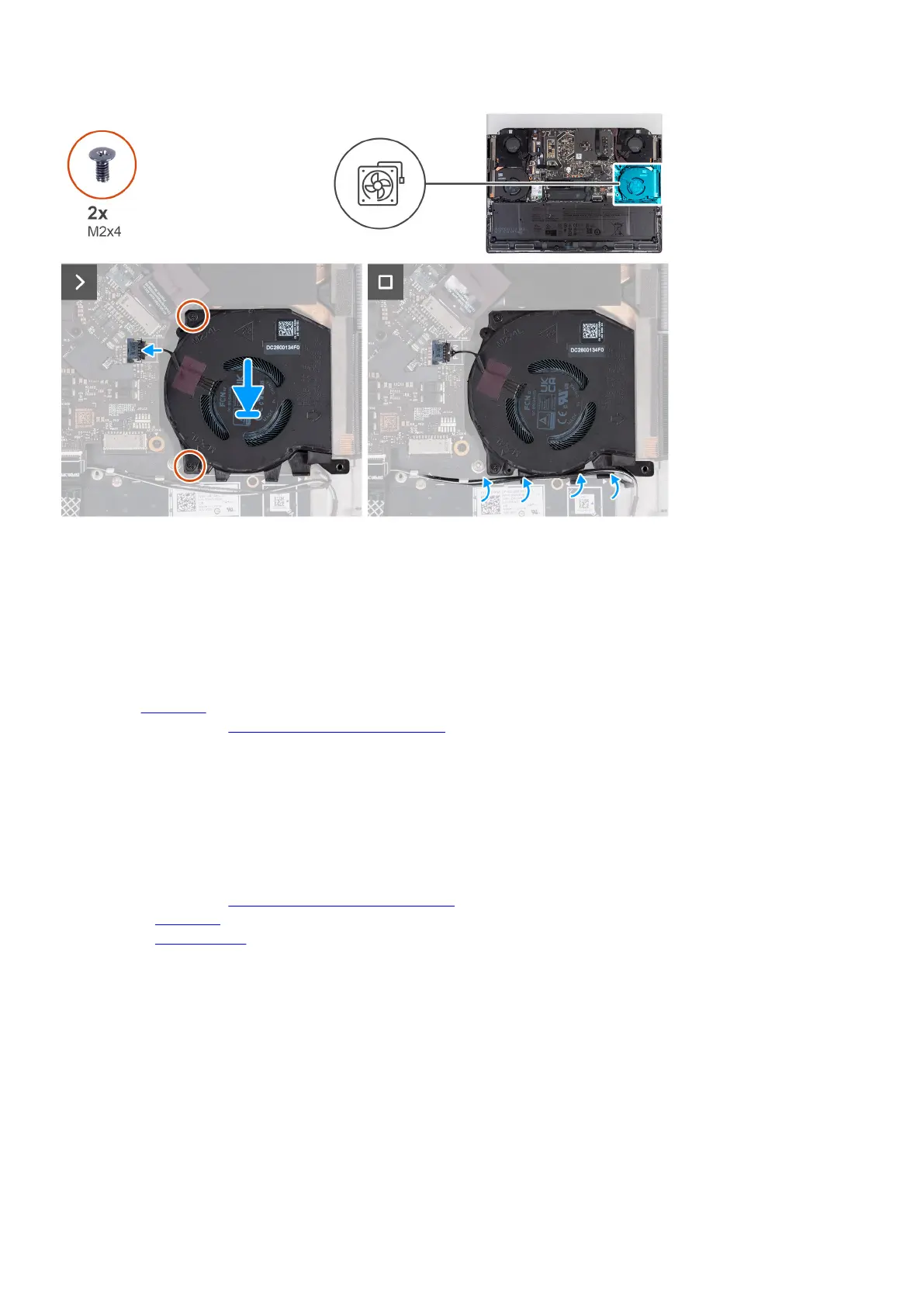

1. Align and place the graphics-card fan into the slot on the palm-rest and keyboard assembly.
2. Connect the graphics-card fan cable to the system board.
3. Replace the two screws (M2x4) that secure the graphics-card fan to the palm-rest and keyboard assembly.
4. Route the speaker cable and the antenna cable through the routing guides on the bottom of the graphics-card fan.
Next steps
1. Install the
base cover.
2. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the rear I/O-cover.
About this task
The following image(s) indicate the location of the power-adapter port and provides a visual representation of the removal
procedure.
