Graphics-card fan
Removing the graphics-card fan
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
About this task

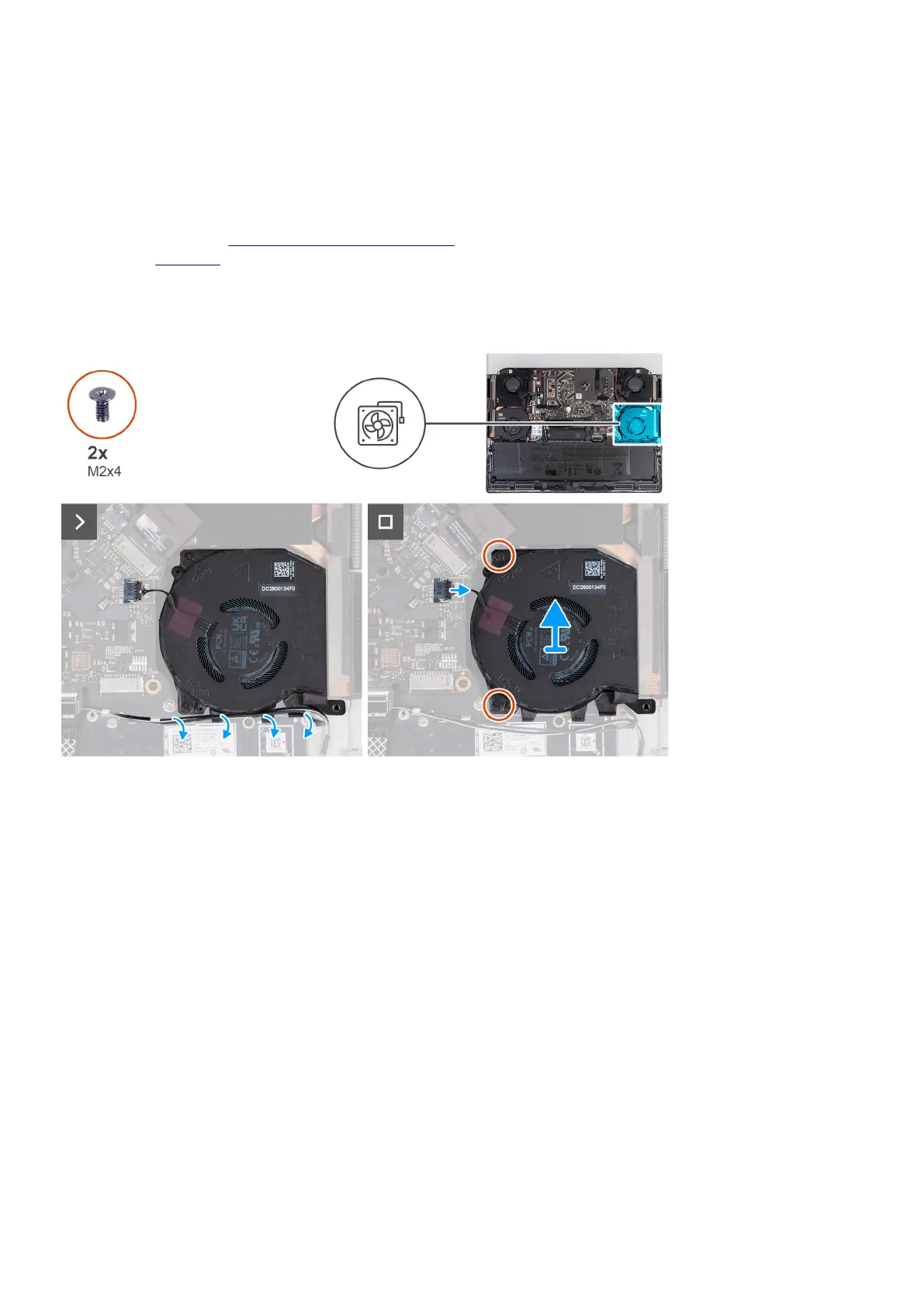

The following image(s) indicate the location of the graphics-card fan and provides a visual representation of the removal procedure.
Steps
1. Disconnect the graphics-card fan cable from the system board.
2. Remove the speaker cable and antenna cables from the routing guides on the bottom of the graphics-card fan.
3. Remove the two screws (M2x4) that secure the graphics-card fan to the palm-rest and keyboard assembly.
4. Lift the graphics-card fan off the palm-rest and keyboard assembly.
Installing the graphics-card fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the graphics-card fan and provides a visual representation of the installation
procedure.
