Solid-state drive bracket
Removing the solid-state drive bracket
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the 2230 solid-state drive or 2280 solid-state drive, as applicable.
About this task

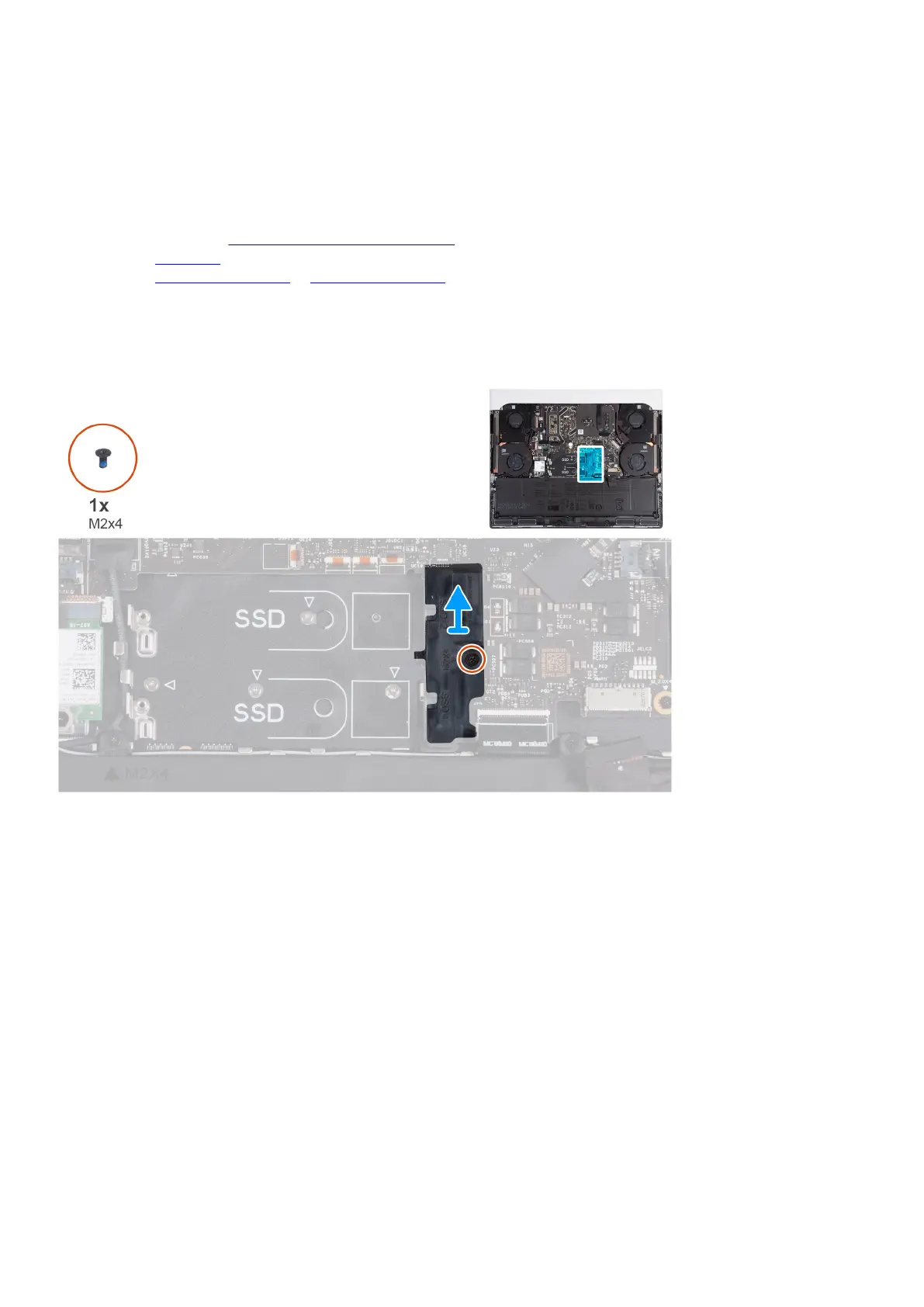

The following image(s) indicate the location of the solid-state drive bracket and provides a visual representation of the removal
procedure.
Steps
1. Remove the screw (M2x4) that secures the solid-state drive bracket to the palm-rest and keyboard assembly.
2. Lift the solid-state drive bracket off the palm-rest and keyboard assembly.
Installing the solid-state drive bracket
About this task
The following image(s) indicate the location of the solid-state drive bracket and provides a visual representation of the installation
procedure.
