13. Remove the four screws (M2.5x4) that secure the left and right display hinge to the top side of the palm-rest and keyboard
assembly.
14. Lift the display assembly off the palm-rest and keyboard assembly.

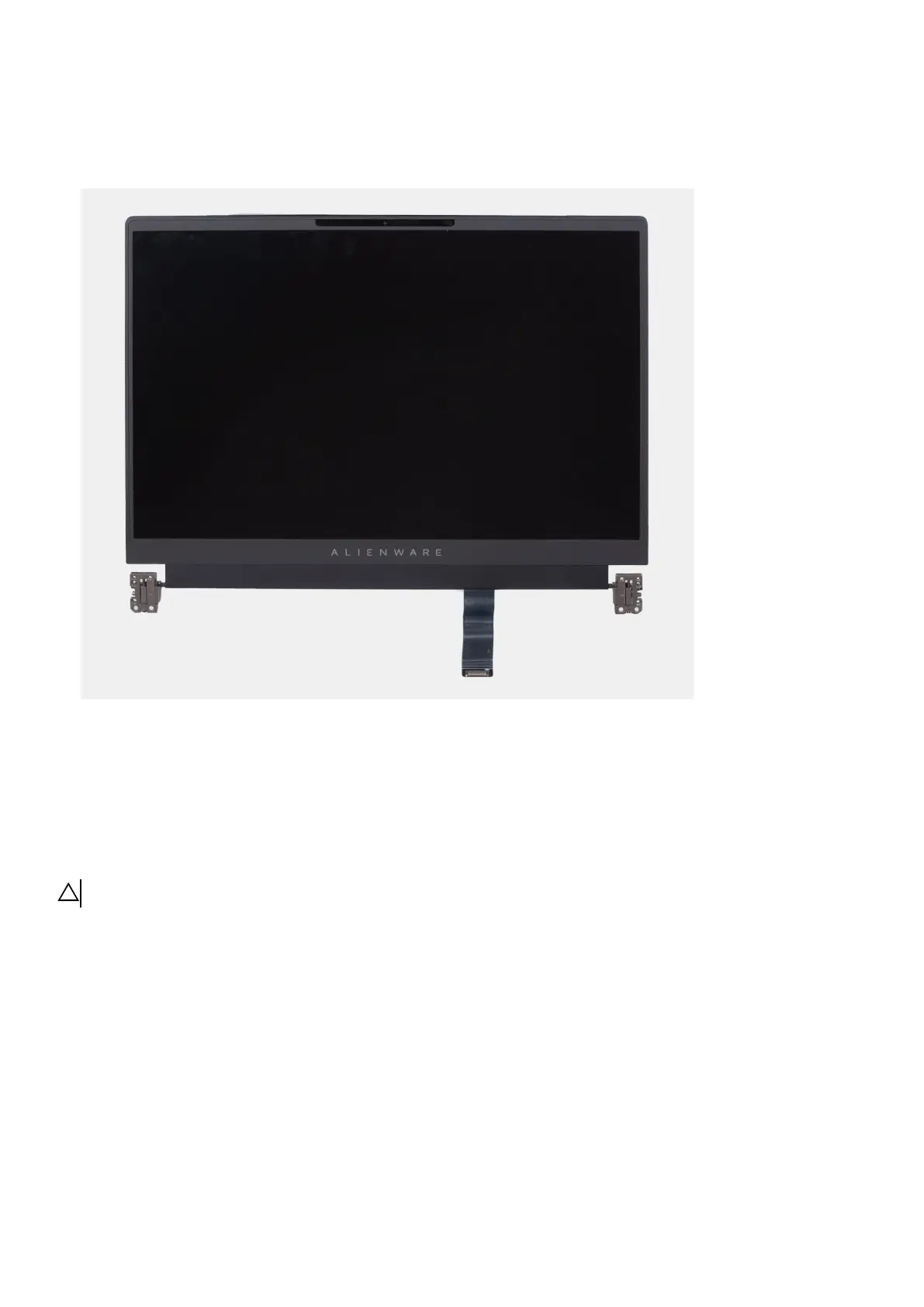

15.After performing the steps above, you are left with the display assembly.
Installing the display assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
CAUTION: Place the computer on a soft and clean surface to avoid scratching the display.
The following image(s) indicate the location of the display assembly and provides a visual representation of the installation
procedure.
47
