Steps

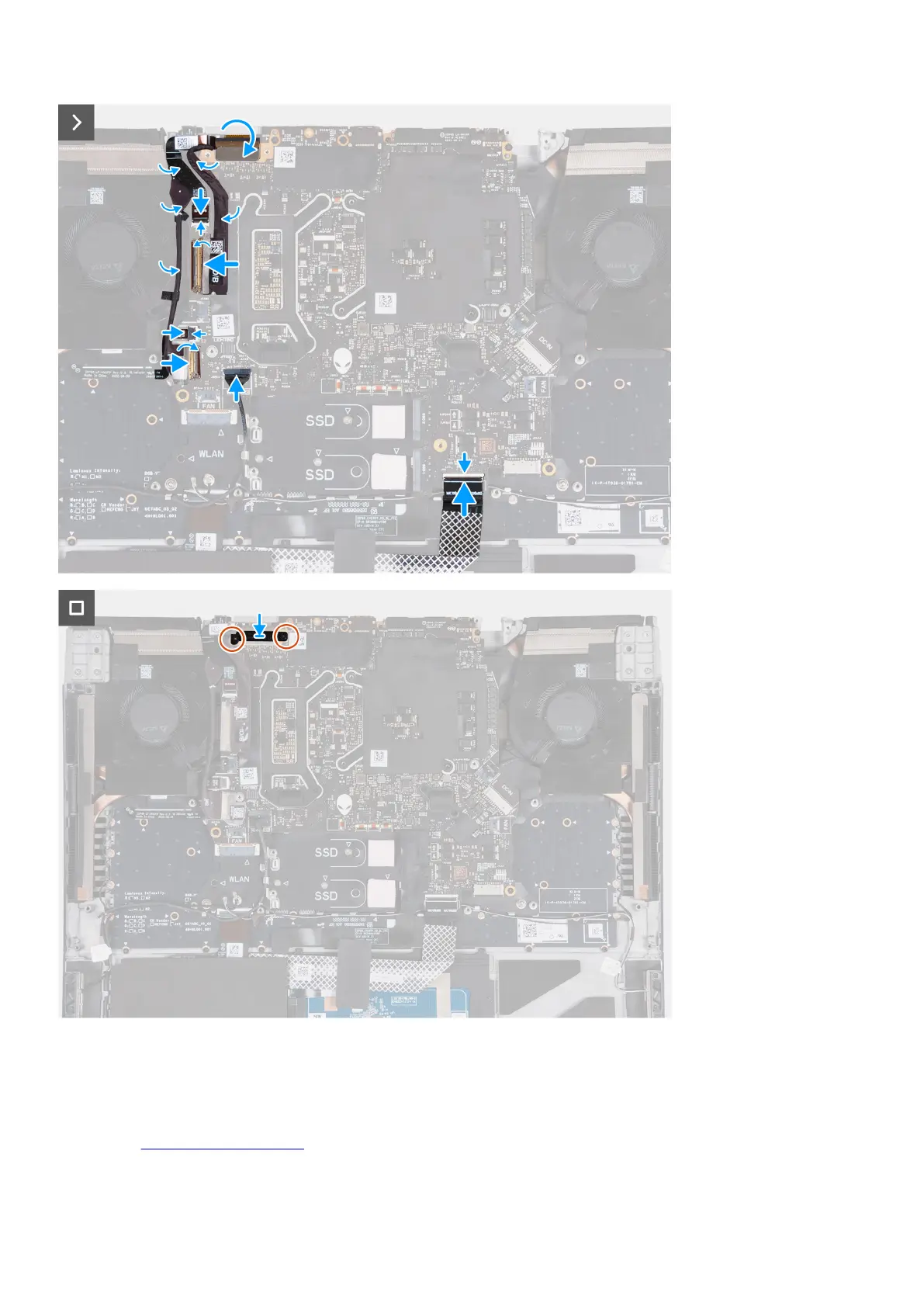

1. Turn the system board over.
2. Align the screw hole on the USB Type-C bracket with the screw hole on the system board.
3. Replace the screw (M2x3) that secures the USB Type-C bracket to the system board.
4. Install the fan and heat-sink assembly.
5. Turn the system-board assembly over and place the system-board assembly on the palm-rest and keyboard assembly.
