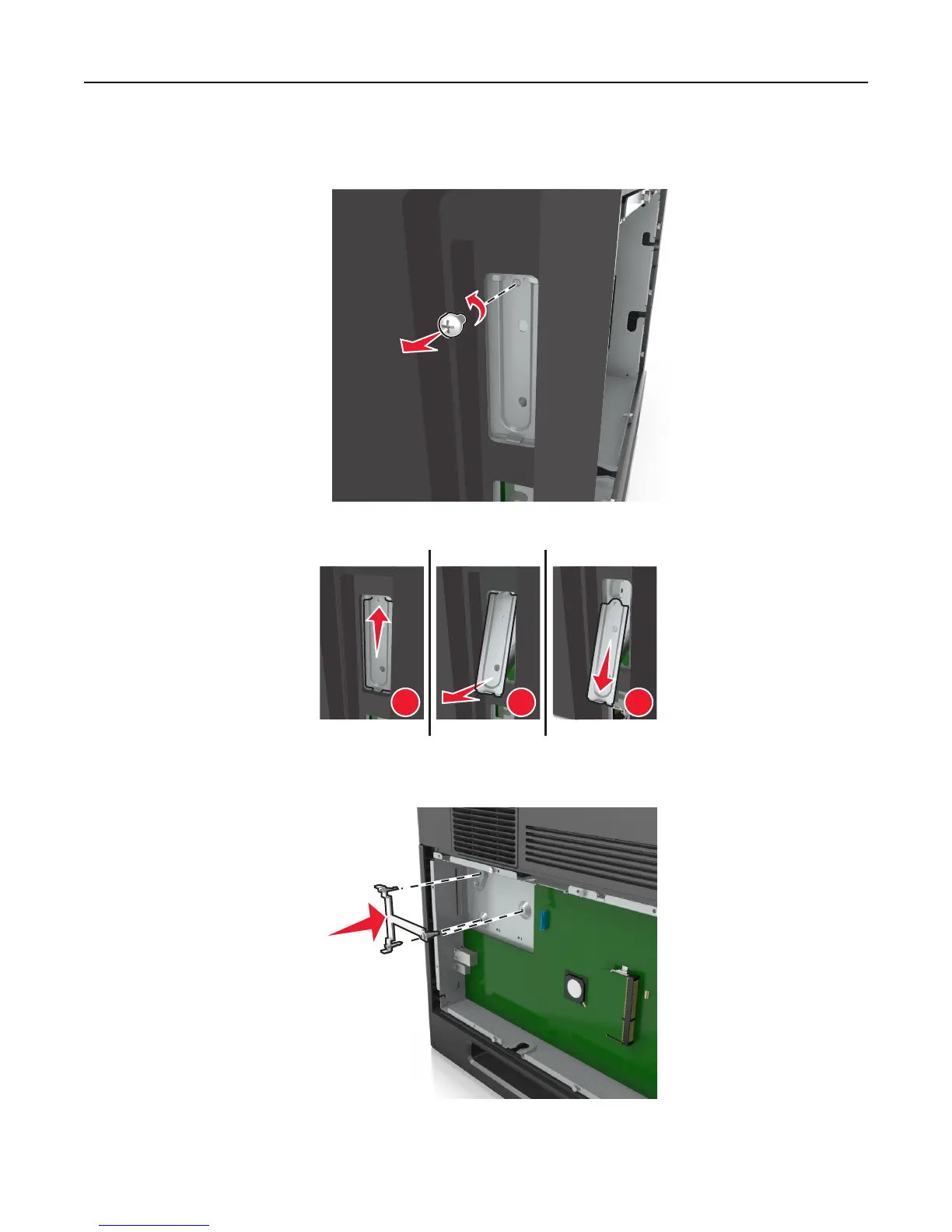

4 Remove the metal cover from the ISP opening.
a Loosen the screw.
b Lift the metal cover, and then pull it out completely.
1 2 3
5 Align the posts of the plastic bracket to the holes on the controller board cage, and then press the plastic bracket
on the controller board cage until it clicks into place.
Note: Make sure that the plastic bracket has latched completely, and that the plastic bracket is seated firmly on
the controller board cage.
Additional printer setup 20

Dell B5460dn Mono Laser Printer Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Standard Memory	512 MB
Output Capacity	500 sheets
Processor Speed	800 MHz
Weight	52.9 lbs
Monthly Duty Cycle	275, 000 pages
Input Capacity	650 sheets
Connectivity	USB 2.0, Ethernet
First Page Out Time	4.4 seconds
Maximum Paper Size	A4, Legal
Operating System Compatibility	Windows, Linux, Mac OS
Duplex Printing	Standard
