Dell B5460dn Mono Laser Printer User Manual

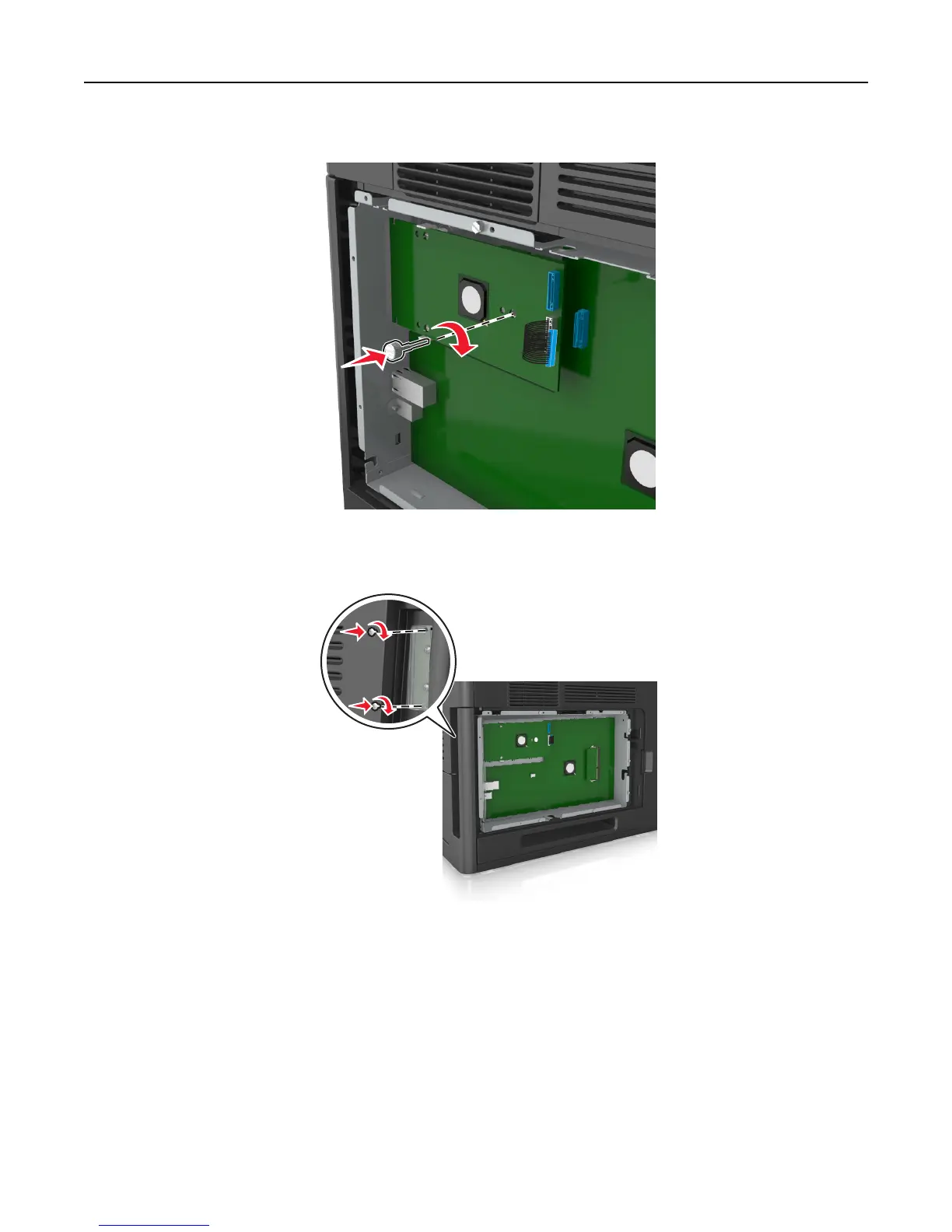

8 Use the provided thumbscrew for the ISP to attach the plastic bracket to the ISP.
Note: Turn the screw clockwise, enough to hold the ISP in place, but do not tighten it yet.
9 Attach the two provided screws to secure the ISP mounting bracket to the controller board shield.
10 Tighten the thumbscrew that is attached to the ISP.
Warning—Potential Damage: Do not screw it on too tightly.
Additional printer setup 22

Dell B5460dn Mono Laser Printer Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Standard Memory	512 MB
Output Capacity	500 sheets
Processor Speed	800 MHz
Weight	52.9 lbs
Monthly Duty Cycle	275, 000 pages
Input Capacity	650 sheets
Connectivity	USB 2.0, Ethernet
First Page Out Time	4.4 seconds
Maximum Paper Size	A4, Legal
Operating System Compatibility	Windows, Linux, Mac OS
Duplex Printing	Standard
