Dell B5460dn Mono Laser Printer - Page 28

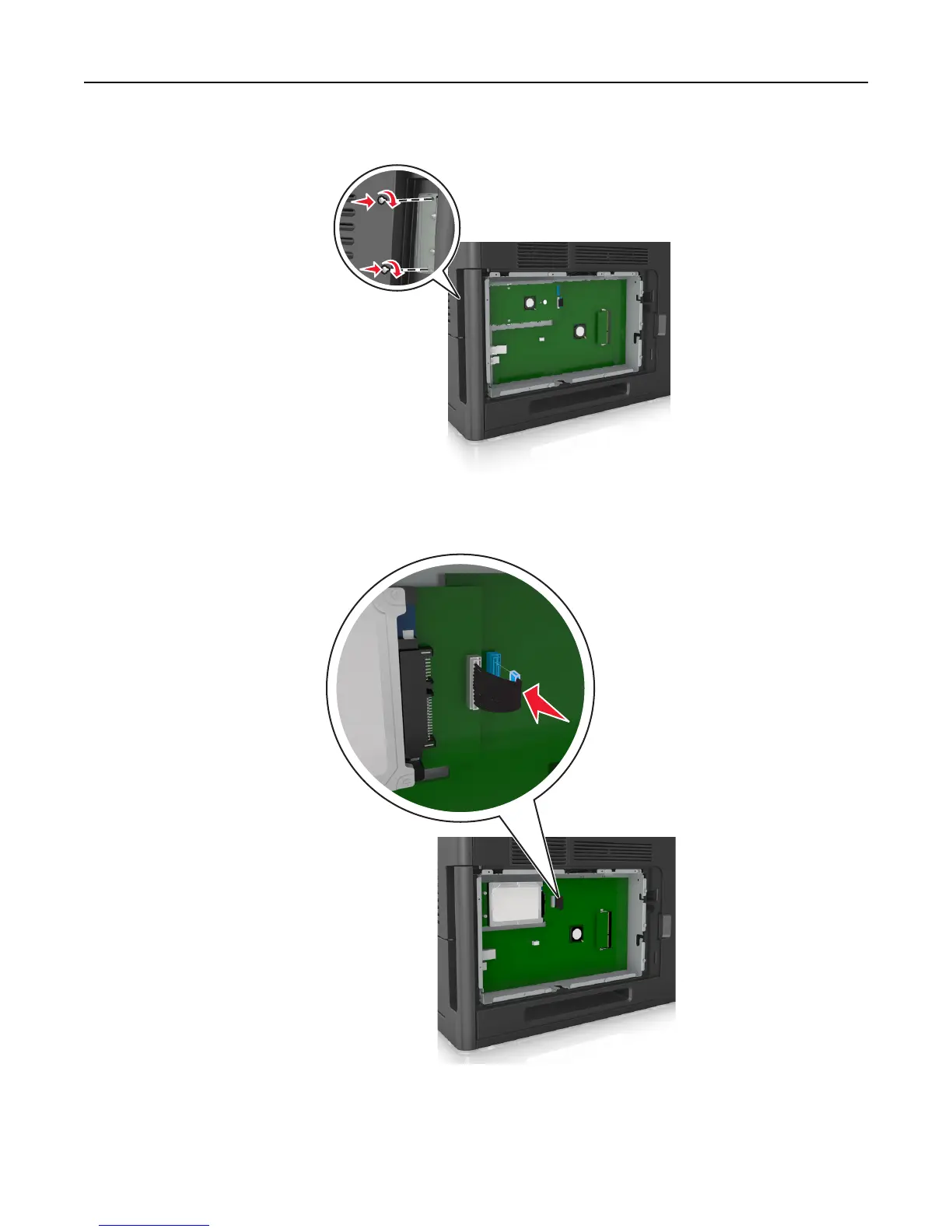

b Use the two provided screws to attach the printer hard disk mounting bracket.
c Insert the plug of the printer hard disk interface cable into the receptacle of the controller board.
Note: The plugs and receptacles are color‑coded.
Additional printer setup 28
