Dell B5460dn Mono Laser Printer User Manual

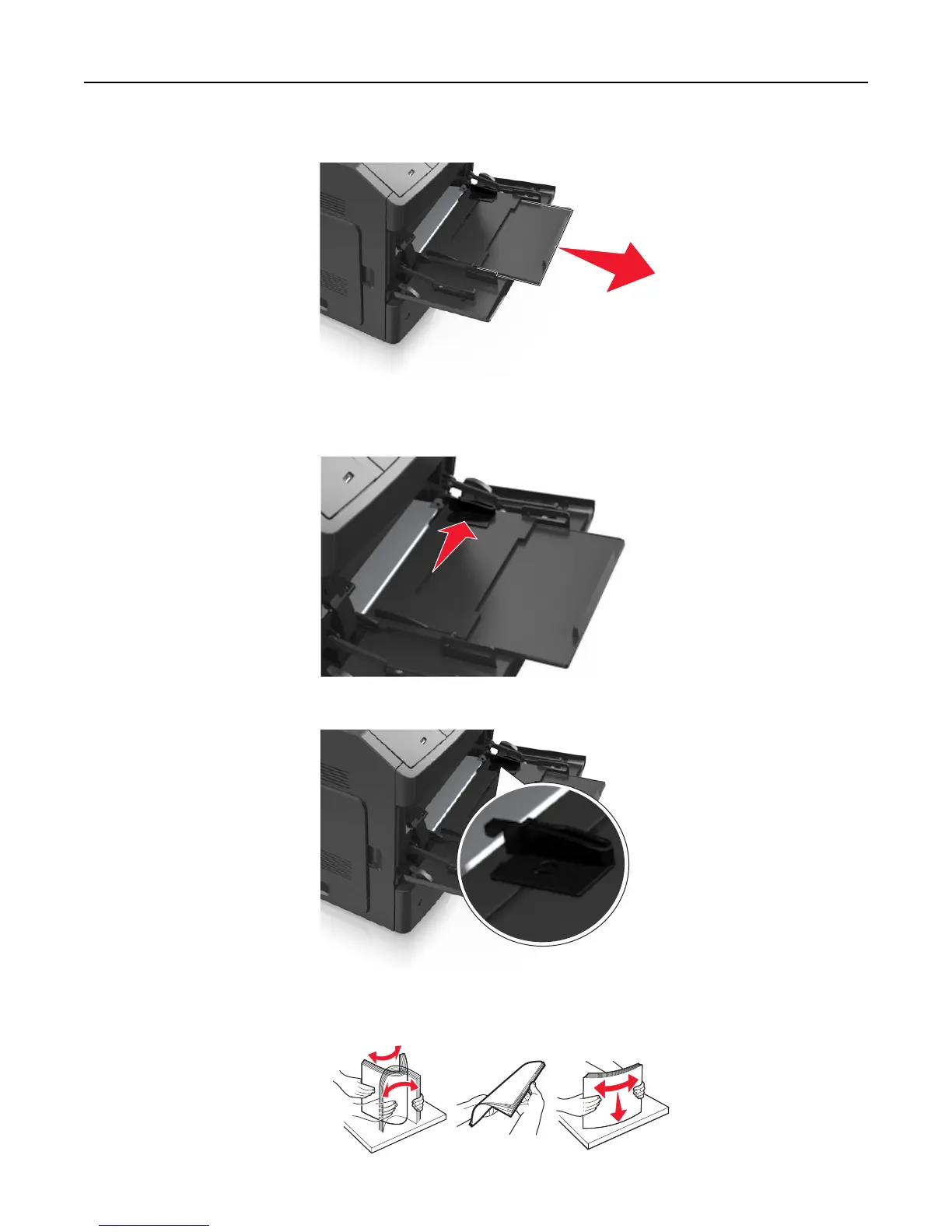

2 Pull the multipurpose feeder extender.
Note: Guide the extender gently so that the multipurpose feeder is fully extended and open.
3 Slide the width guide to the correct position for the size of the paper being loaded.
Note: Use the paper size indicators on the bottom of the tray to help position the guides.
4 Prepare the paper or specialty media for loading.
• Flex and fan the sheets to loosen them. Do not fold or crease the paper. Straighten the edges on a level surface.
Loading paper and specialty media 57

Dell B5460dn Mono Laser Printer Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Standard Memory	512 MB
Output Capacity	500 sheets
Processor Speed	800 MHz
Weight	52.9 lbs
Monthly Duty Cycle	275, 000 pages
Input Capacity	650 sheets
Connectivity	USB 2.0, Ethernet
First Page Out Time	4.4 seconds
Maximum Paper Size	A4, Legal
Operating System Compatibility	Windows, Linux, Mac OS
Duplex Printing	Standard
