Dell C3760dn Color Laser Printer User Manual

Installing Optional Accessories 59

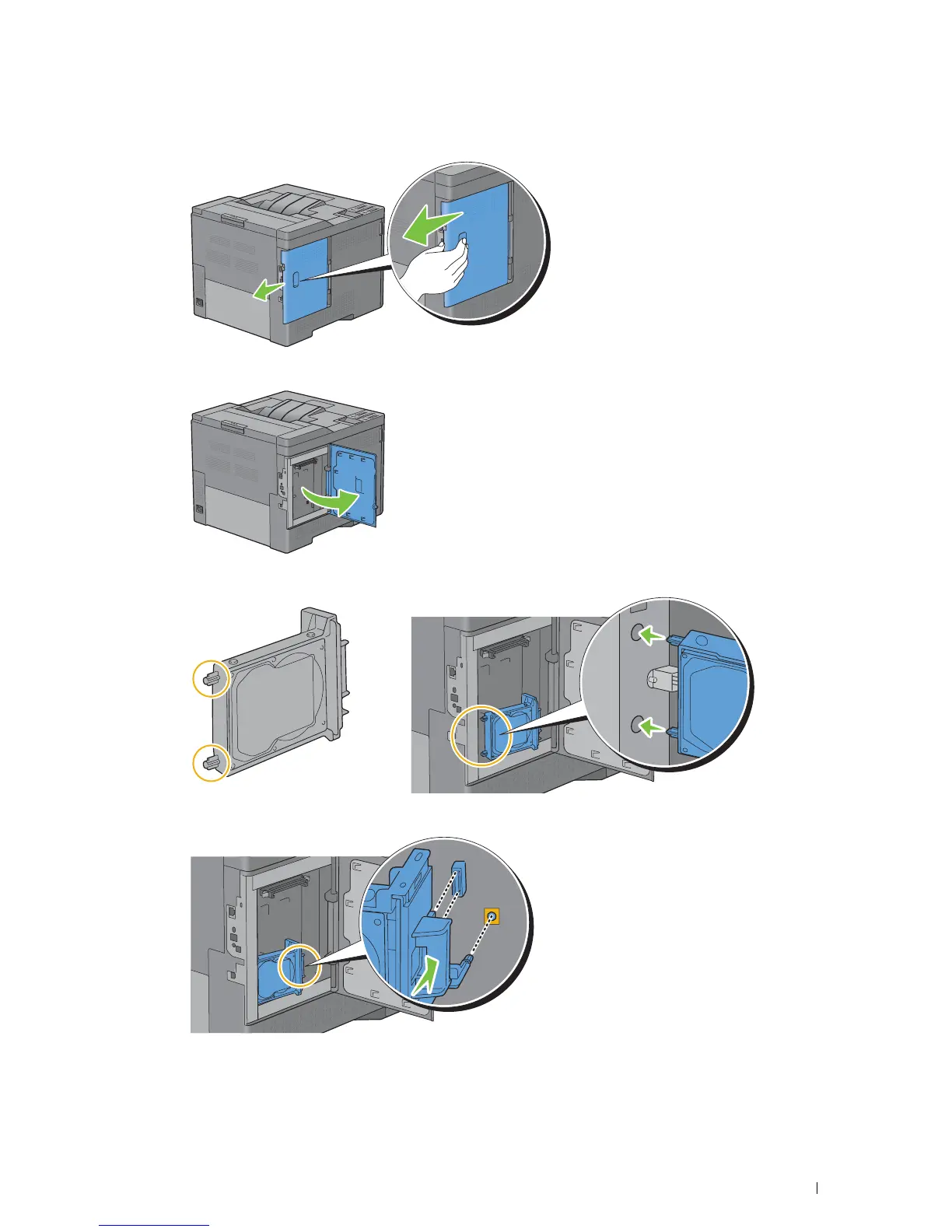

3 Slide the left side cover towards the back of the printer.
4 Open the left side cover completely.
5 Insert the two plastic pins on the hard disk into the metal casing holes.
6 Attach the plastic pin and the connector to the control board, and push the hard disk firmly into place.

Dell C3760dn Color Laser Printer Specifications

General

Print Technology	Laser
Print Resolution	600 x 600 dpi
Monthly Duty Cycle	Up to 80, 000 pages
Duplex Printing	Yes
Standard Input Capacity	550 sheets
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 inches
Network Ready	Yes
Toner Cartridges	Black, Cyan, Magenta, Yellow
Memory	256 MB
Print Speed	Up to 36 ppm (black) / Up to 36 ppm (color)
