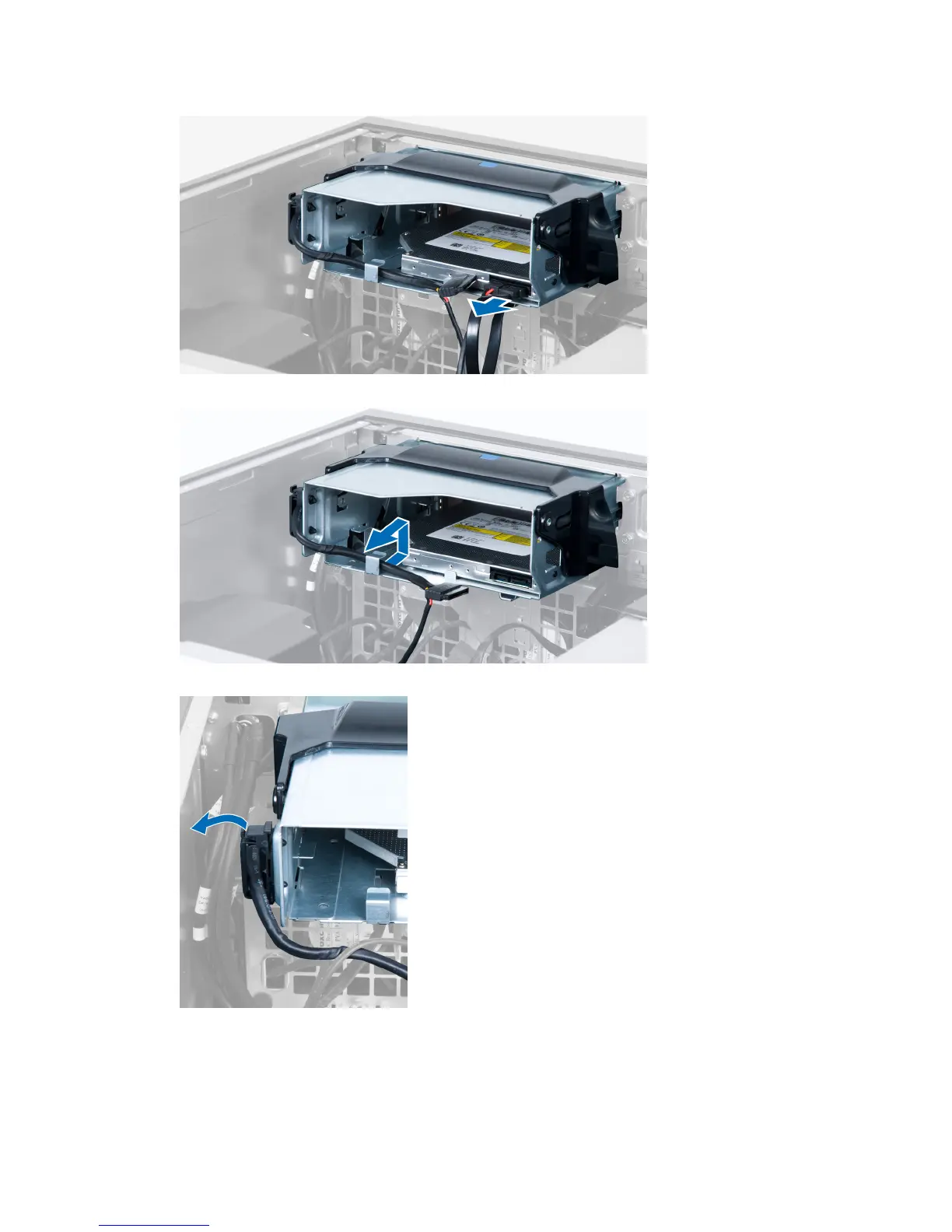

5. Slide the hard drive out of the compartment.
6. If a 2.5–inch hard drive is installed, flex the hard-drive bracket on both sides to loosen the hard drive and lift it to remove it from the
hard-drive bracket [1, 2].
7. If a 3.5–inch hard drive is installed, flex the hard-drive bracket on both sides to loosen the hard drive.
16
Removing and installing components
