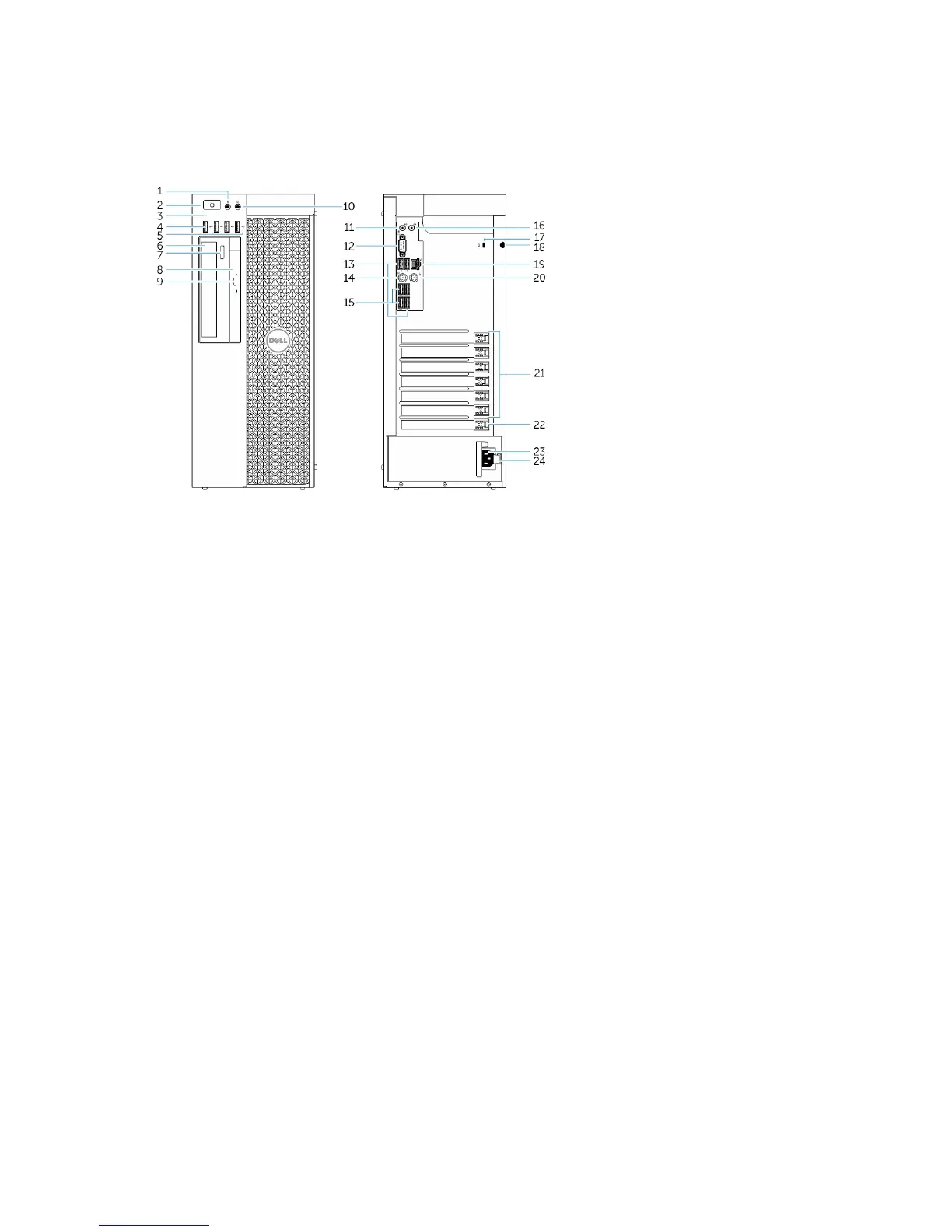

Figure 3. Inside View of T5810 Computer
1. PCIe-card retention
2. internal speaker
3. power-supply unit
4. mother board
Removing the Power Supply Unit - PSU
1. Follow the procedures in Before Working Inside Your Computer.
2. If the PSU is locked, remove the screw to unlock the PSU. For more information, see the PSU Lock Feature.
3. Perform the following steps as shown in the illustration:
a) Hold the handle bar and press down on the blue latch to release the PSU [1,2].
b) Hold the handle bar to slide the PSU out of the computer.
Installing the Power Supply Unit - PSU
1. Hold the PSU handle and slide the PSU into the computer.
Removing and installing components
9
