Dell D01T

Installing the System-Fan Assembly
1. Place the fans in the fan assembly and attach the grommets.
2. Place the fan assembly in the chassis.
3. Tighten the screws to secure the fan assembly to the chassis.
4. Connect the system-fan cables to their connectors on the system board.
5. Route the system-fan cables out of the opening in the system-fan module in the direction of the system board.
6. Tighten the screws that secure the drive bay.
7. Replace the metal plate and install the screw that secures metal plate to the system fan.
8. Route and connect the system-board cable to its connector.
9. Install:

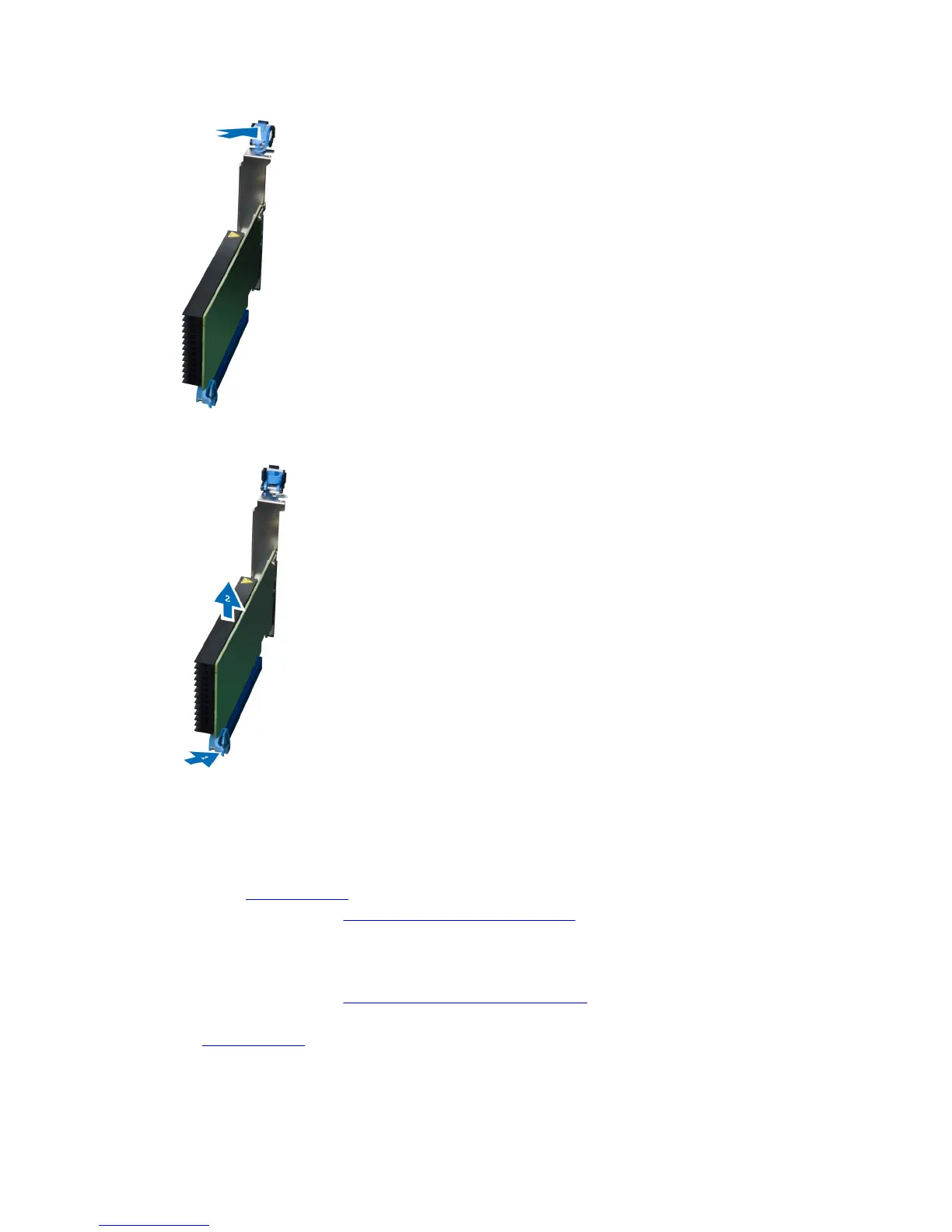

a) PCIe-card retention
b) memory shroud
c) optical drive
d) computer cover
10. Follow the procedures in After Working Inside Your Computer.
Removing the Heatsink Assembly
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the computer cover.
3. Perform the following steps:
a) Disconnect the heatsink fan cable from the system board [1].
b) Loosen the captive screws that secure the heatsink assembly [2].
c) Lift the heatsink assembly and remove it from the computer [3].
Installing the Heatsink Assembly
1. Place the heatsink assembly inside the computer.
28
Removing and installing components
