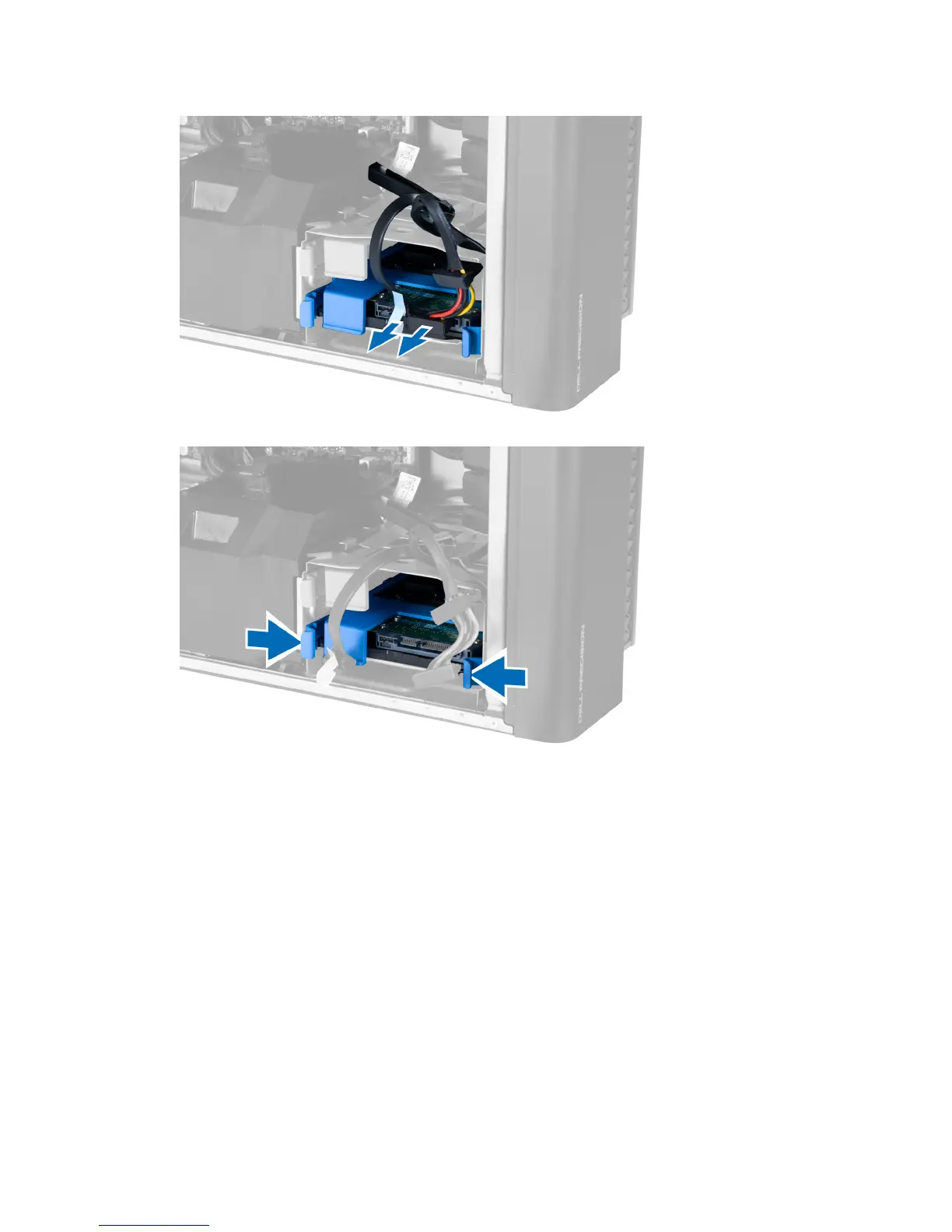

5. Release the latch that secures the HDD thermal sensor. Here, the HDD thermal sensor is attached to the hard drive.
Installing the HDD Thermal Sensor
NOTE: The HDD thermal sensor is an optional component and your computer may not ship with it.
1. Connect the HDD thermal sensor to the SAS HDD component that you wish to monitor the temperature, and secure it with the latch.
2. Attach the HDD thermal sensor cable to the system board.
3. Install the computer cover.
4. Follow the procedures in After Working Inside Your Computer.
Removing the Input-Output Panel
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove:
a) computer cover
b) front bezel
3. Remove the screws that secure the Input/Output (I/O) panel cage to the chassis.
4. Remove the I/O panel cage from the chassis.
Removing and installing components
