Dell D01T

1. PCI slot (slot 6)
2. PCIe x16 slot (PCIe 2.0 wired as x4) (slot 5)
3. PCIe 3.0 x16 slot (slot 4)
4. PCIe 2.0 x1 slot (slot 3)
5. PCIe 3.0 x16 slot (slot 2)
6. PCIe x16 slot (PCIe 3.0 wired as x8) (slot 1)
7. DIMM slots
8. intrusion-switch connector
9. CPU heatsink fan connector
10. processor socket
11. DIMM slots
12. front-panel audio connector
13. internal USB 2.0 connector
14. coin-cell battery
15. optional hard-drive fan connector
16. system-fan connector
17. HDD temperature sensor connector
18. system-fan connector
19. PWR_REMOTE connector (for Teradici Host Card)
20. thunderbolt sideband connector
21. system-fan connector
22. password jumper
23. front panel and USB 2.0 connector
24. internal speaker connector
25. USB 3.0 front-panel connector
26. internal USB 2.0 connector for flexbay
27. SATA Connectors (HDD0-HDD3 & SATA0-1)
28. RTC_RST Jumper
29. 24-pin system power connector
30. CPU power connector

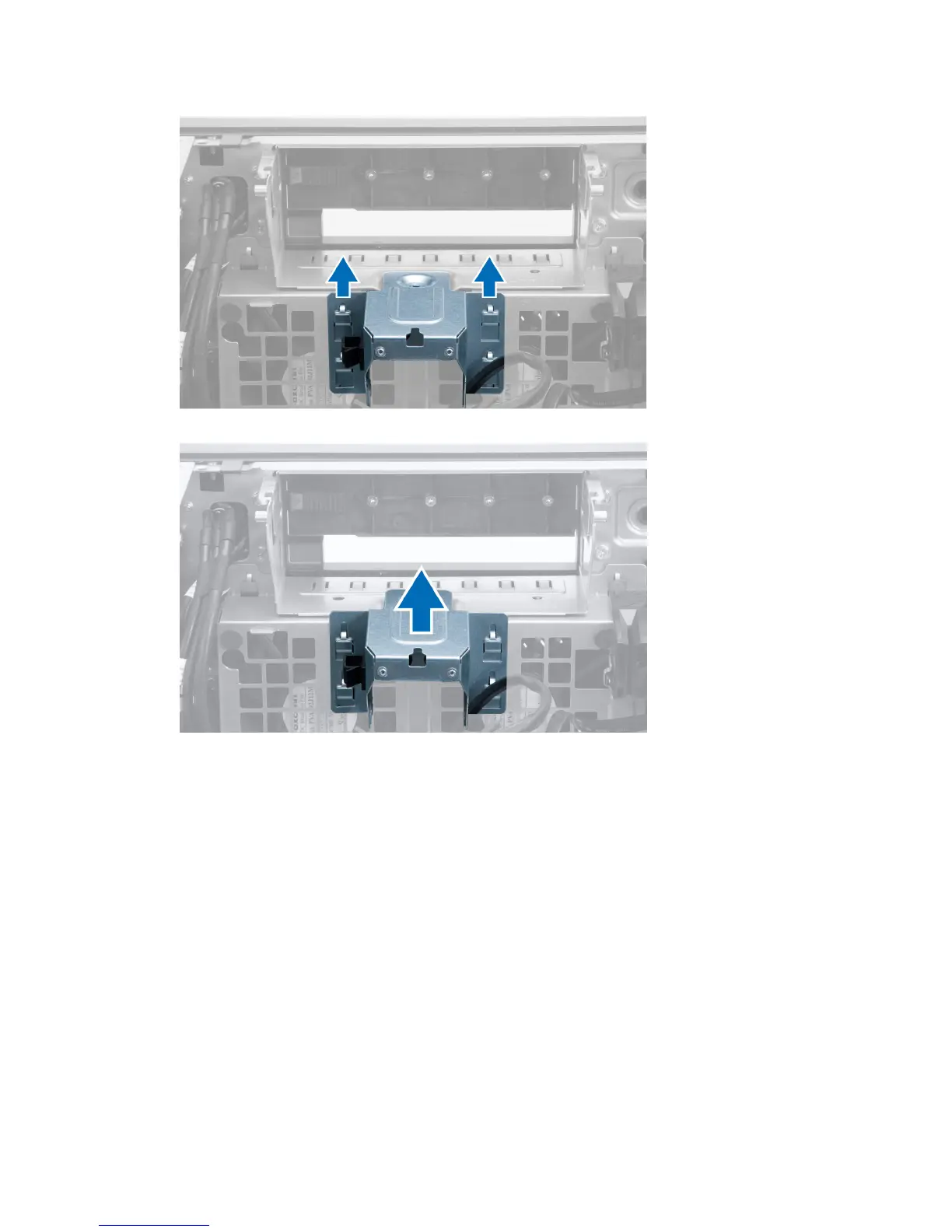

Removing and installing components
31
