Setting up the monitor │ 17

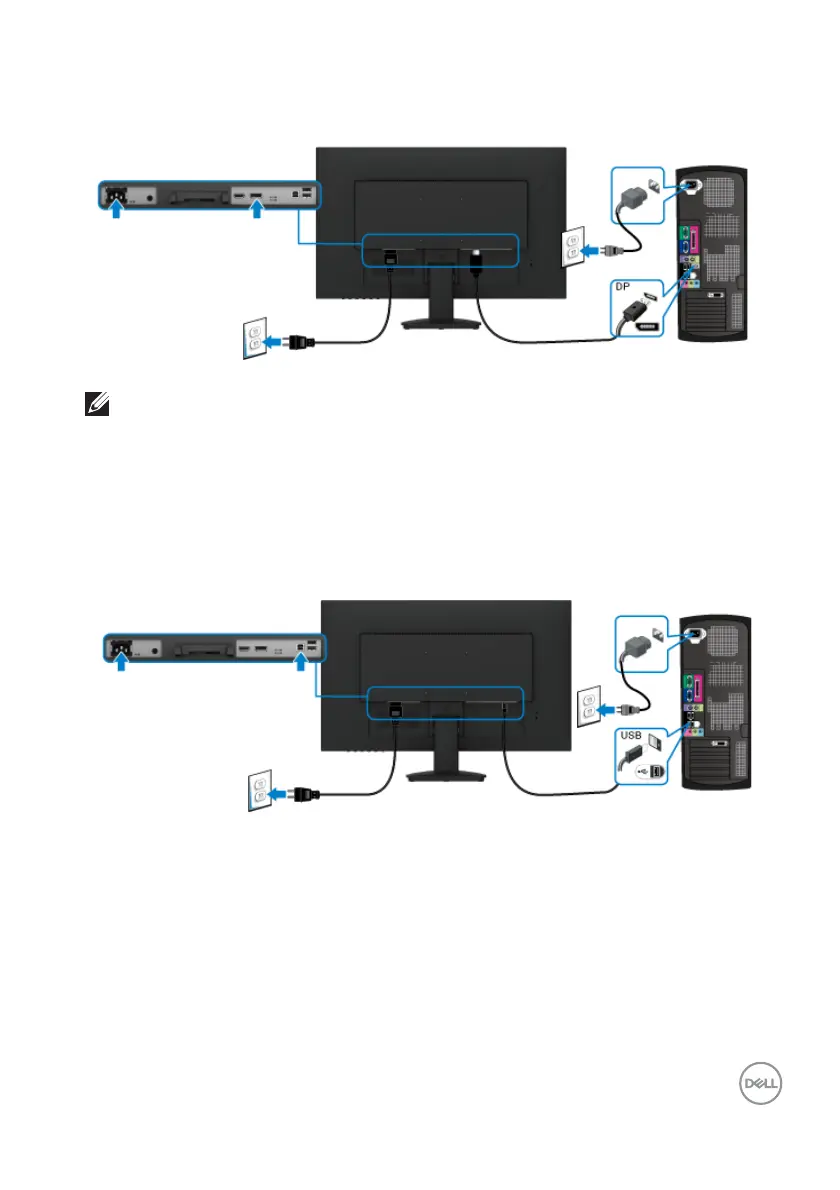

Connecting the DisplayPort (DisplayPort to DisplayPort) cable (optional)
NOTE: The graphics are used for the purpose of illustration only.
Appearance of the computer may vary.
Connecting the USB 2.0 cable
After you have completed connecting the HDMI or DisplayPort cable, follow the
p
rocedures below to connect the USB 2.0 cable to the computer and complete
your monitor setup:
1. Connect the upstream USB 2.0 port (cable supplied) to an appropriate USB
port on your computer. (See Bottom view for details.)
2. Conne
ct the USB 2.0 peripherals to the downstream USB ports on the
monitor.
3. Pl
ug the power cables for your computer and monitor into a nearby outlet.
4. T
urn on the monitor and the computer.
If your monitor displays an image, instal lation is complete. If it does not display
an image
, see USB interface is not working.
