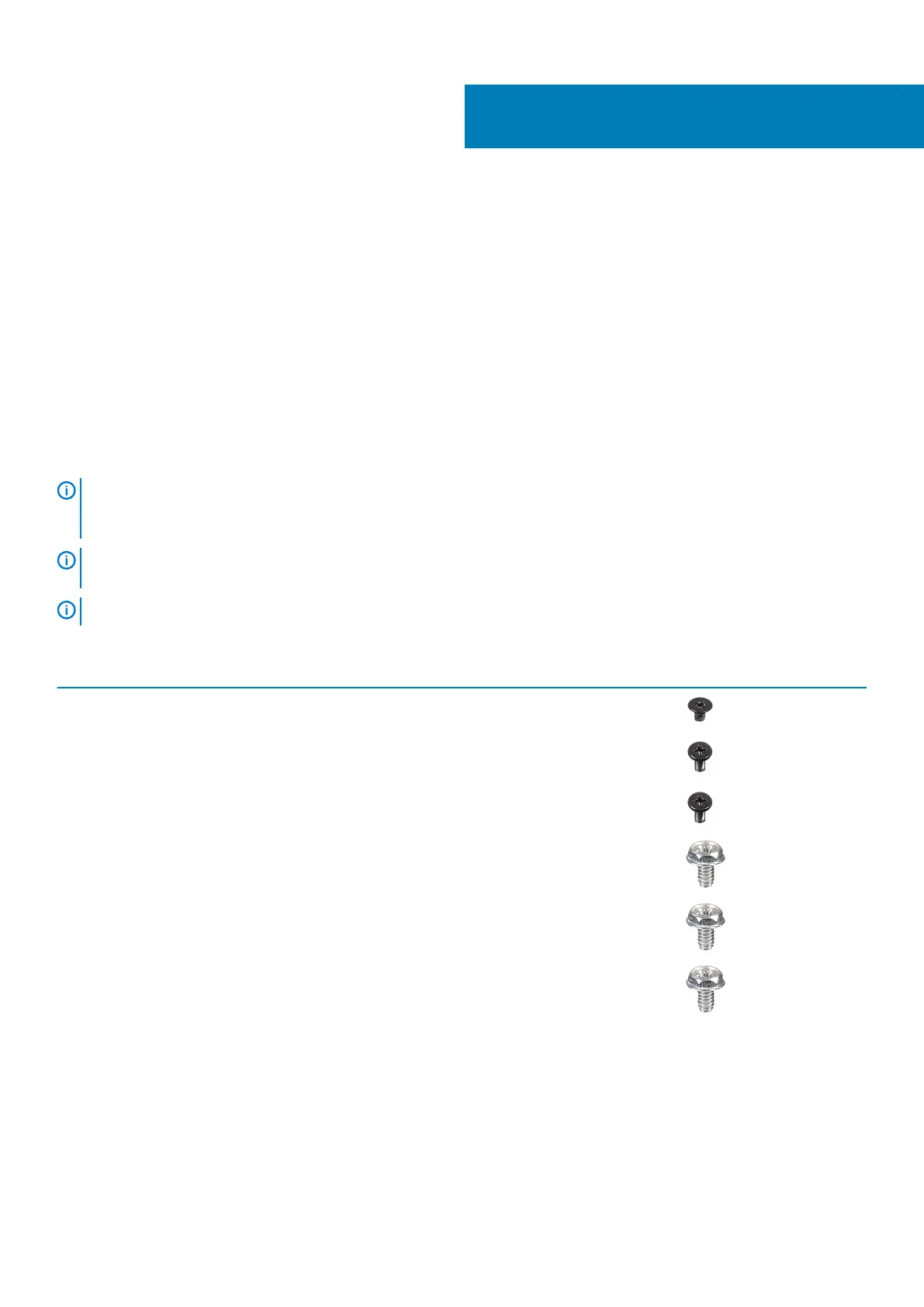

Disassembly and reassembly
Recommended tools
The procedures in this document require the following tools:
Phillips #0 screwdriver
Phillips #1 screwdriver
Philips #2 screwdriver
Plastic scribe
Hex screwdriver
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type
is restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.
Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Wireless card System board M2x3 1
Solid-state drive System board M2x4 1
Intel Optane memory
module
System board M2x4 1
Power-supply unit Chassis #6-32 3
Ports bezel Chassis #6-32 1
System board Chassis #6-32 8
Processor fan and heat-
sink assembly
System board Captive screw 4
VR heat sink System board Captive screw 2
2
10 Disassembly and reassembly
