Steps

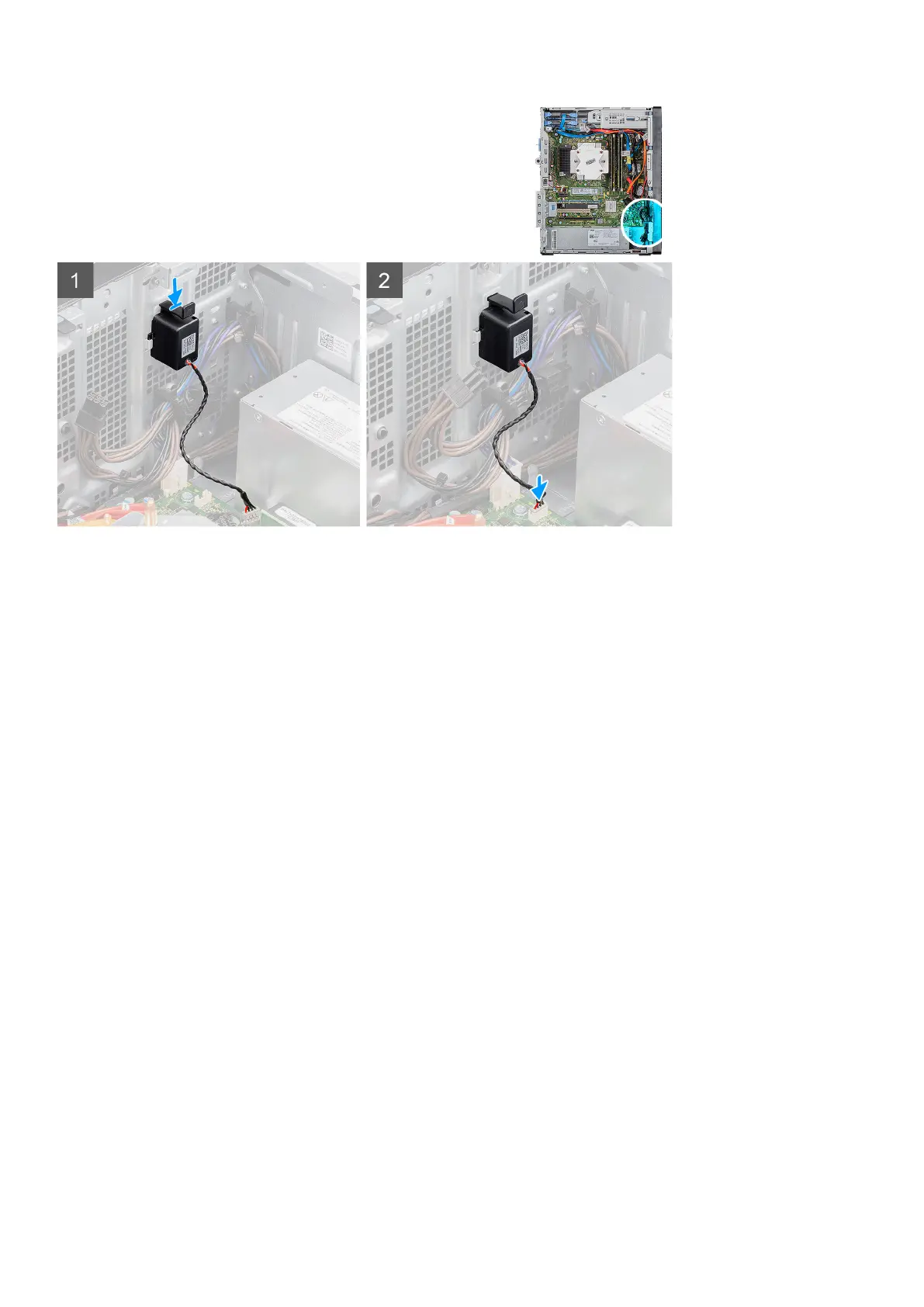

1. Press and slide the speaker in the slot on the chassis until it snaps into place.
2. Connect the speaker cable to the system board.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the left-side cover.
About this task
The following images indicate the location of the power button switch and provides a visual representation of the removal procedure.
54
Disassembly and reassembly
