Installing the front cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

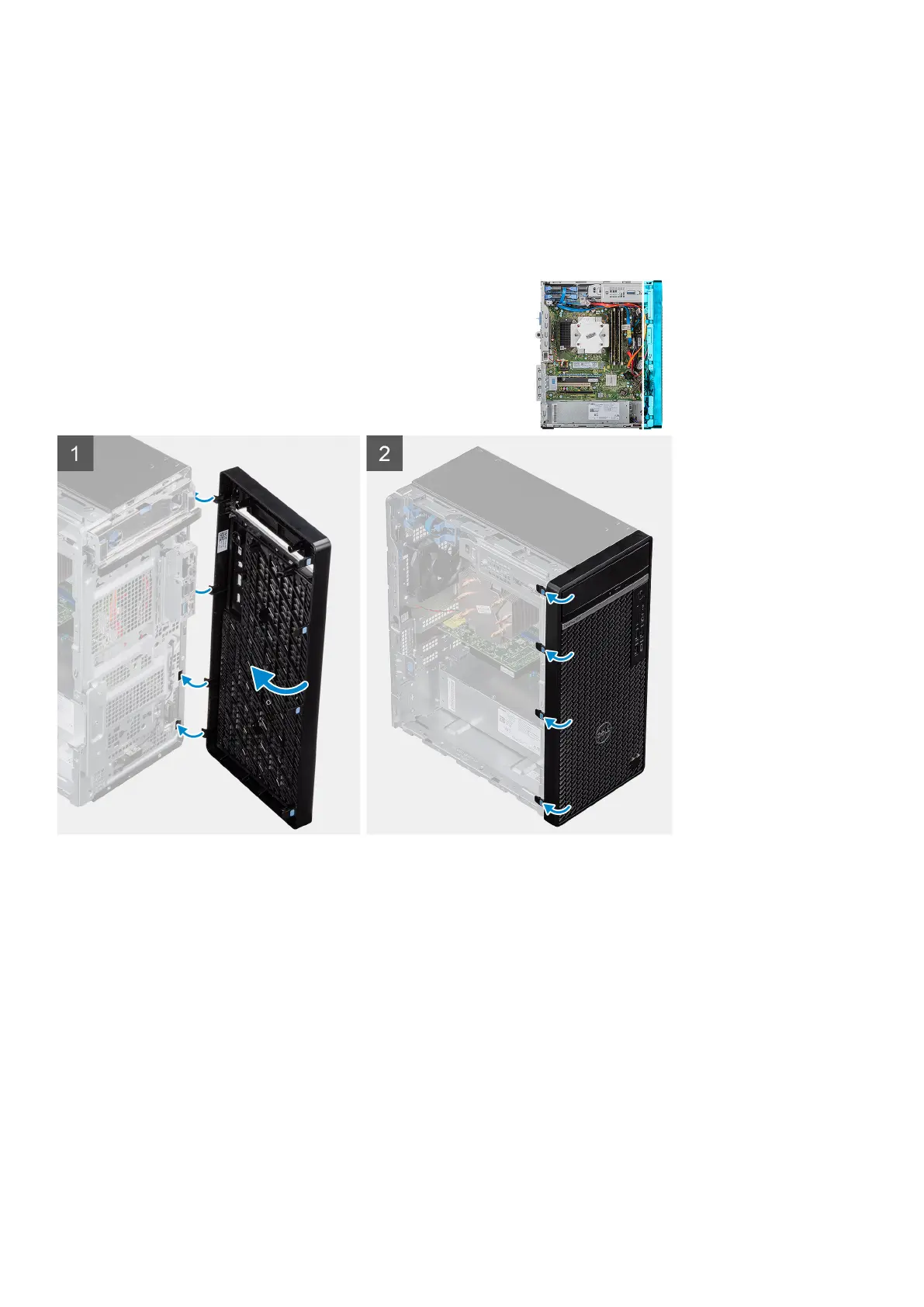

The following images indicate the location of the front cover and provide a visual representation of the installation procedure.
Steps
1. Place the computer in an upright position.
2. Align the front-cover tabs with the slots on the chassis.
3. Move the front cover towards the chassis and snap it into place.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
2.5-inch hard drive
Disassembly and reassembly
15
