Installing the 2.5-inch hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

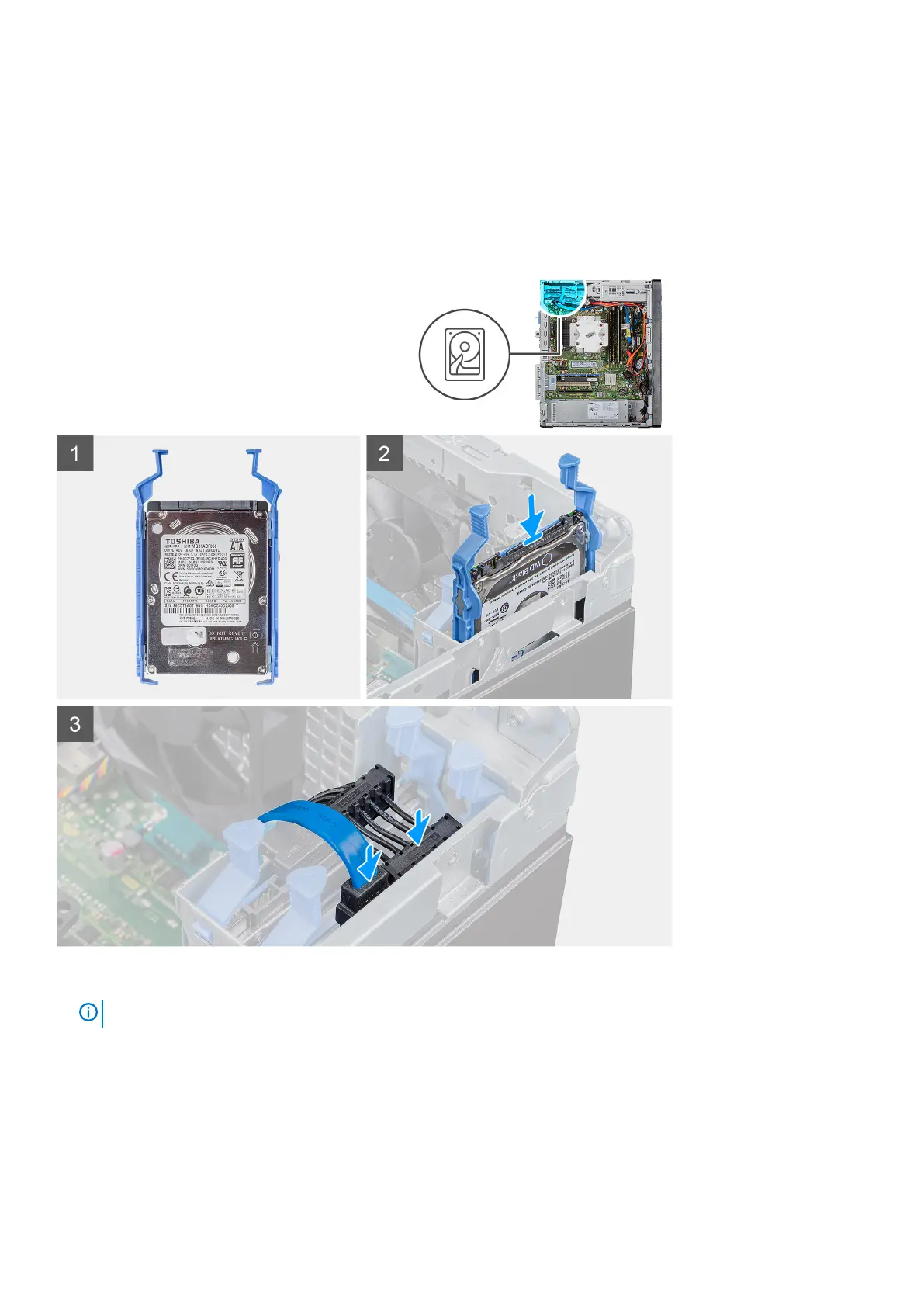

The following images indicate the location of the 2.5-inch hard drive and provides a visual representation of the installation procedure.
Steps
1.
NOTE:
Note the orientation or the SATA connector marking on the
Slide the hard-drive assembly into the hard-drive cage until it snaps into place.
2. Connect the data cable and power cable to the hard drive.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Disassembly and reassembly
17
