About this task

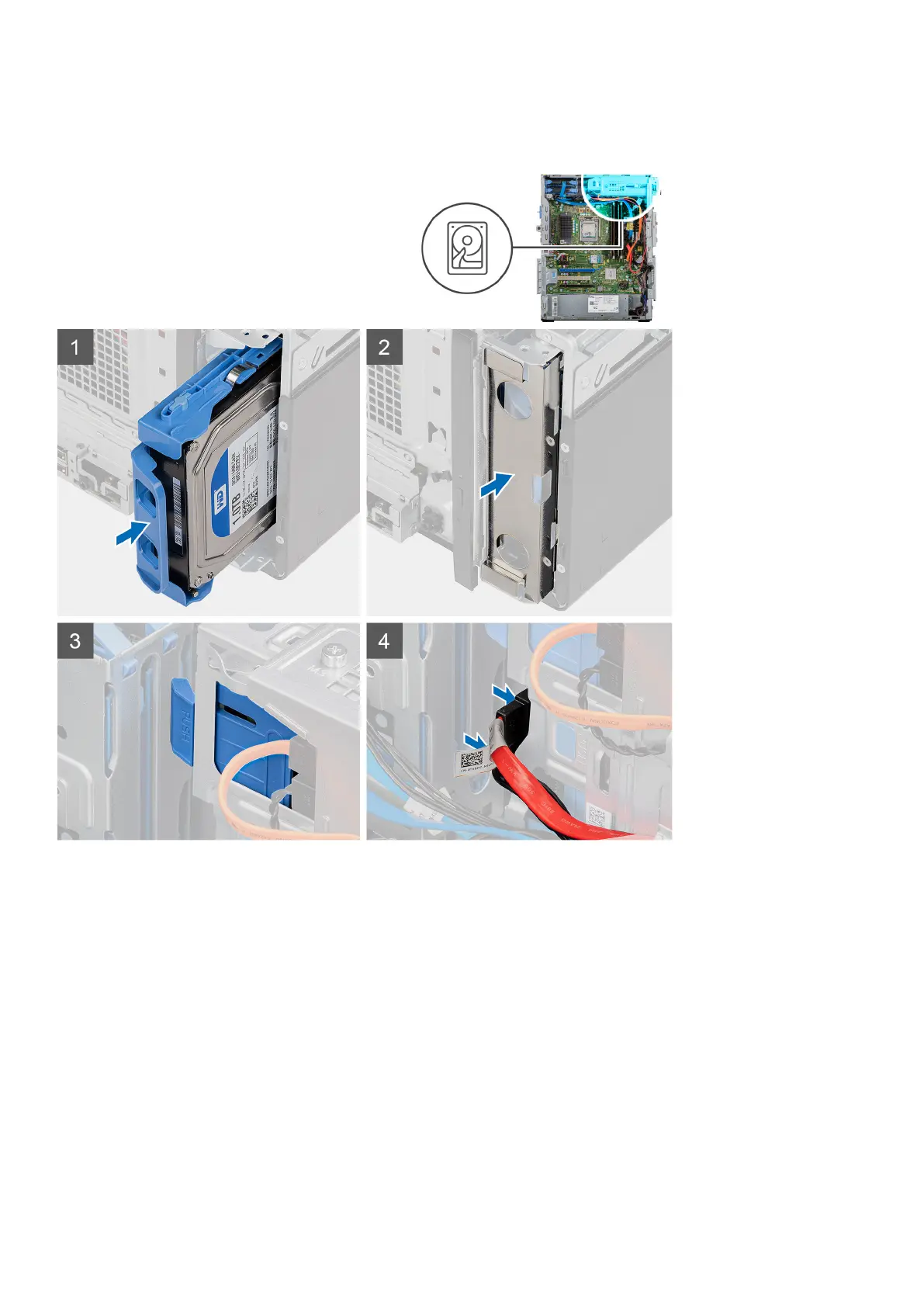

The following images indicate the location of the 3.5-inch hard drive assembly and provides a visual representation of the installation
procedure.
Steps
1. Slide and insert the hard-drive assembly into the hard drive cage.
2. Replace the EMI shield on the chassis.
3. Align the hard-drive assembly with the tabs on the chassis.
4. Route the power cable and data cable through the routing guides on the hard-drive assembly and connect the cables to the hard
drive.
Next steps
1. Install the left-side cover.
2. Follow the procedure in After working inside your computer.
Disassembly and reassembly
21
