3. expansion card riser 3 4. riser guide-back
5. expansion card riser 3 connector

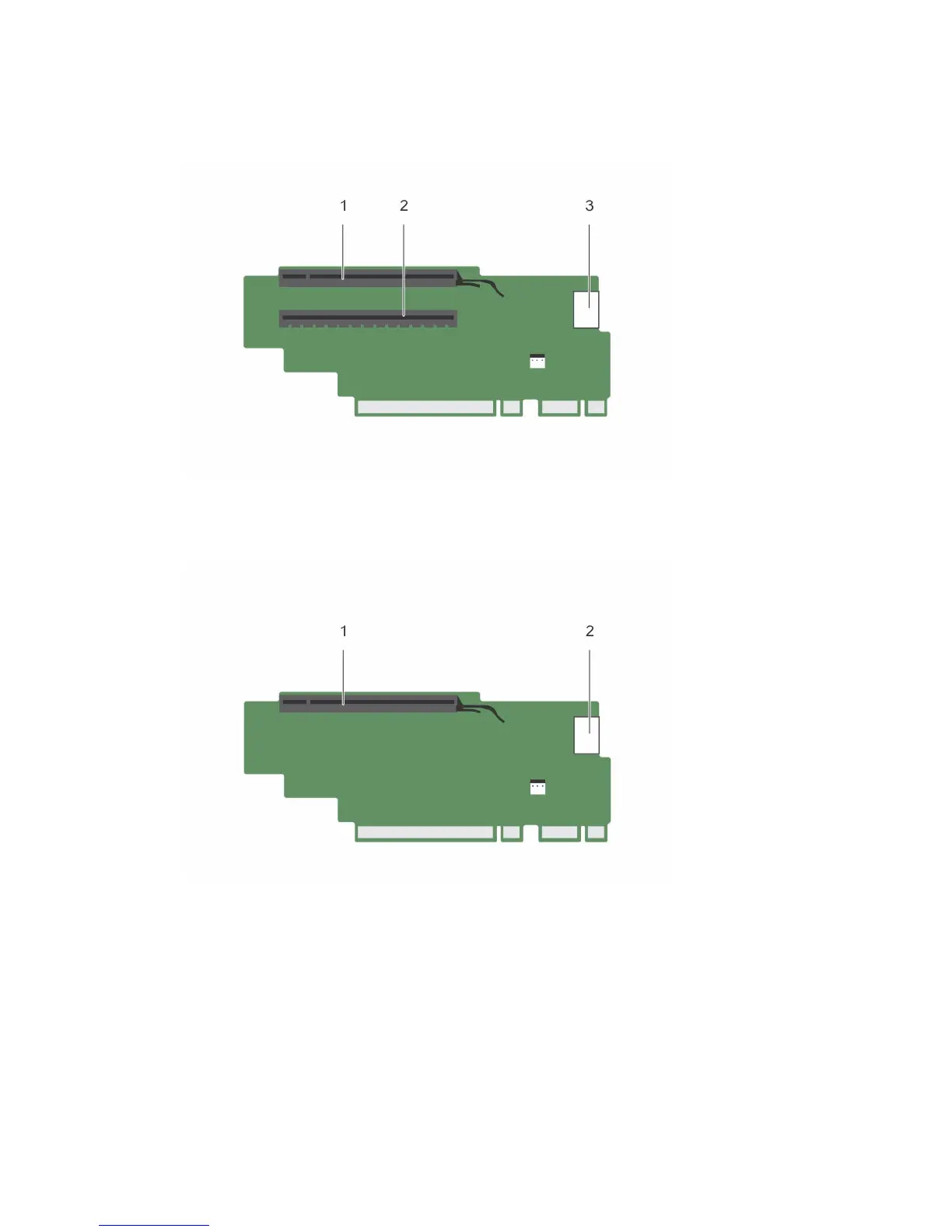

Figure 44. Identifying connectors on the expansion card riser 3 (default)
1. expansion card slot 6 2. expansion card slot 7
3. power connector (for GPU cards)
Figure 45. Identifying connectors on the expansion card riser 3 (alternate)
1. expansion card slot 6 2. power connector (for GPU cards)
Next steps
1. If removed, install an expansion card on the riser.
2. If applicable, replace the expansion card riser.
3. Follow the procedure listed in the After working inside your system section.
