16 About Your Monitor

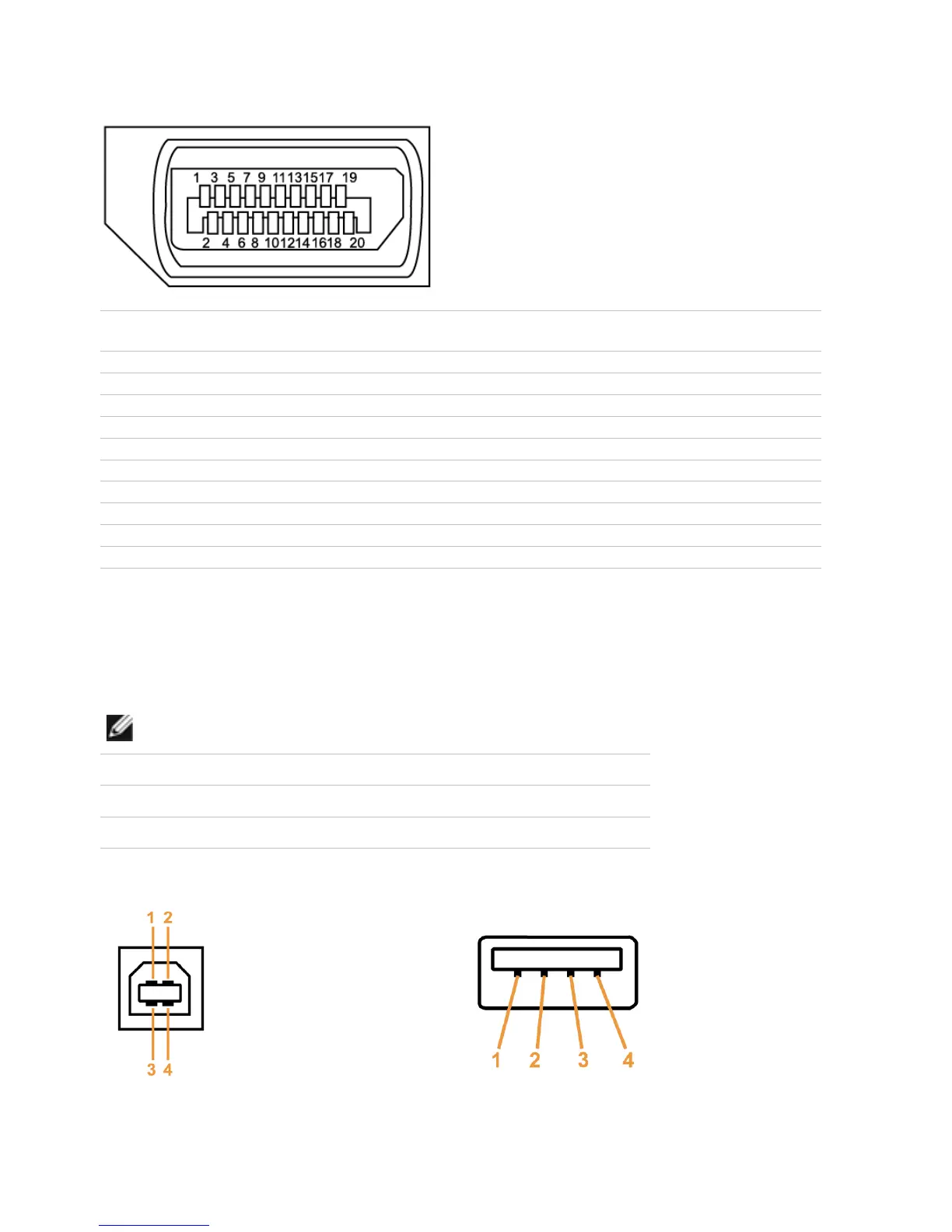

DisplayPort
Pin Number
20-pin Side of the monitor
connector
Pin Number
20-pin Side of the monitor
connector
1 ML0 (p) 11 GND
2 GND 12 ML3 (n)
3 ML0 (n) 13 GND
4 ML1 (p) 14 GND
5 GND 15 AUX (p)
6 ML1 (n) 16 GND
7 ML2 (p) 17 AUX (n)
8 GND 18 HPD
9 ML2 (n) 19 DP_PWR Return
10 ML3 (p) 20 +3.3 V DP_PWR
Universal Serial Bus (USB)
This section gives you information about the USB ports available on your monitor.
Your computer has the following USB ports:
•
1 upstream
• 2 downstream
NOTE: The USB ports on this monitor are USB 2.0 compliant.
Transfer speed Data Rate Power Consumption
Hi-Speed 480 Mbps 2.5 W each port (maximum)
Full speed 12 Mbps 2.5 W each port (maximum)
USB Upstream port USB Downstream port
