Dell E2014T User Manual

26  Setting Up the Monitor

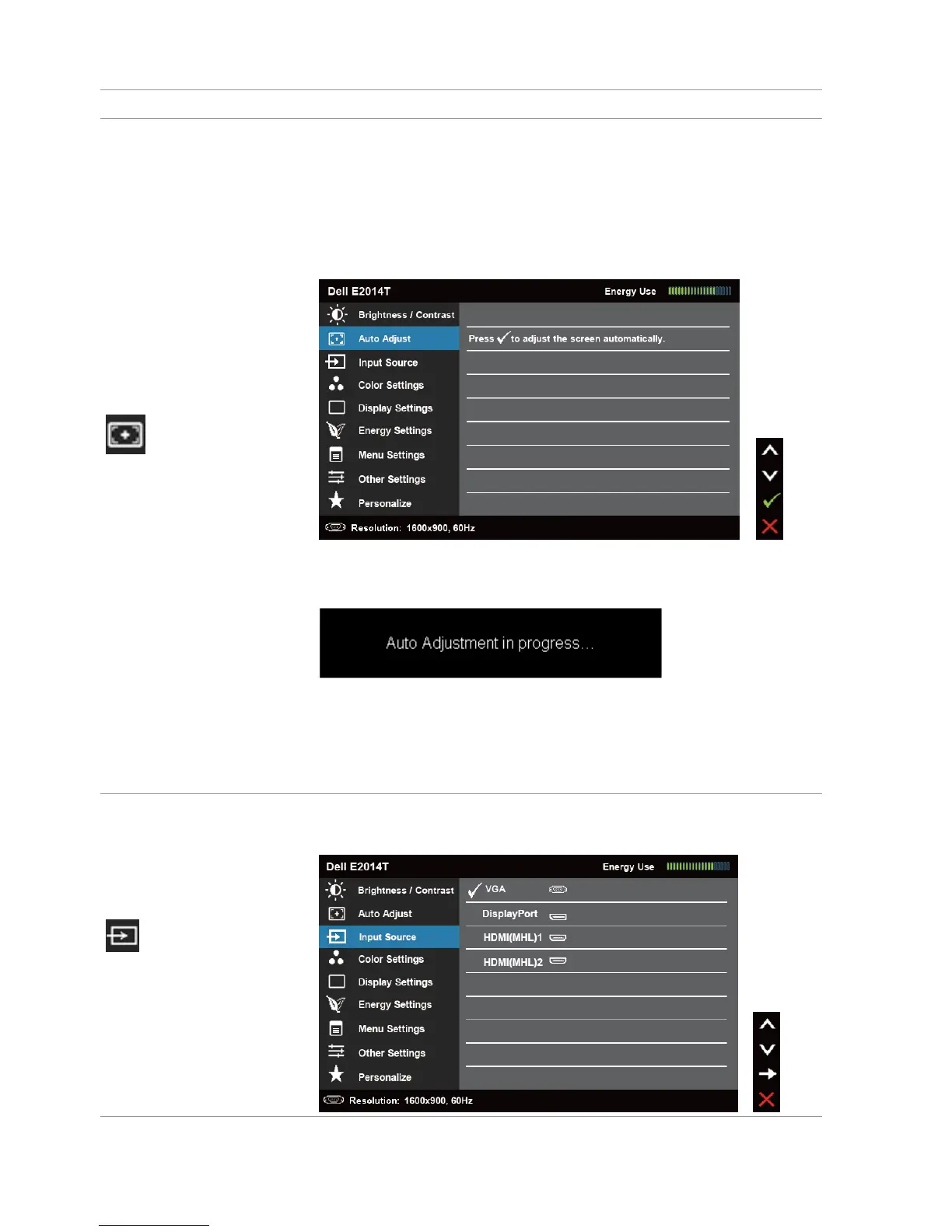

Menu and Submenus Description
Auto Adjust
The Auto Adjust feature optimizes the display settings
for use with your setup. Auto Adjust feature allows the
monitor to automatically adjust to the incoming video
signal. After using Auto Adjust feature, you can further
tune your monitor by using the Pixel Clock and Phase
controls under Displays Settings.
The following dialog appears on a black screen as the
monitor automatically adjusts to the current input:
NOTE: In most cases, Auto Adjust produces the best
image for your configuration.
NOTE: Auto Adjust feature option is only available when
your monitor is connected using the VGA cable.
Use the Input Source menu to select between different
video inputs that are be connected to your monitor.
Input Source

Dell E2014T Specifications

General

Pixel pitch	0.27 x 0.27 mm
Aspect ratio	16:9
Screen shape	Flat
Response time	2 ms
Display diagonal	19.5 \
Touchscreen type	Tabletop
Display brightness	225 cd/m²
Display resolution	1600 x 900 pixels
Display technology	LED
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Display diagonal (metric)	49.4 cm
Viewing angle, horizontal	170 °
Certification	EPEAT Gold\\r TCO
Product color	Black
Display viewable area (HxV)	432.00 x 432.00 mm
Dimensions (W x D x H) with stand	505.9 x 165 x 376 mm
Cables included	AC, HDMI, USB
Tilt angle range	5 - 31 °
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	16 W
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	2
Package weight	6070 g
Sustainability certificates	ENERGY STAR
NVIDIA G-SYNC	No

Weight and Dimensions

Depth (with stand)	165 mm
Width (with stand)	505.9 mm
Height (with stand)	376 mm
Weight (with stand)	4890 g
Depth (without stand)	51.7 mm
Height (without stand)	311.2 mm
Weight (without stand)	3430 g
