4. Slide the NDC towards the front of the system until the Ethernet connectors
are clear of the slot in the back panel.

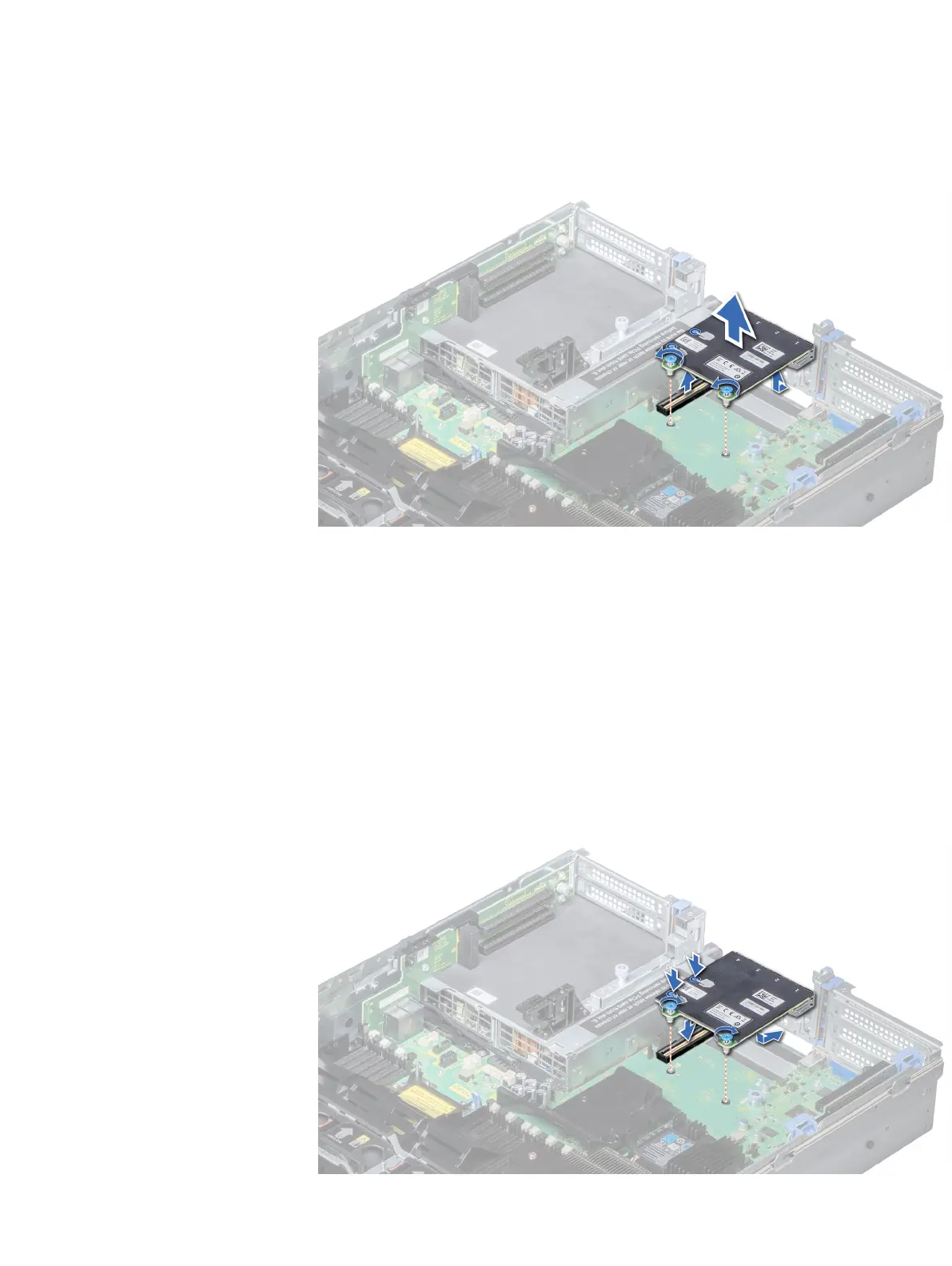

Figure 45 Removing the network daughter card
Install the network daughter card
Procedure
1. Orient the NDC so that the Ethernet connectors fit through the slot in the
chassis.
2. Align the captive screws at the back-end of the card with the screw holes on
the system board.
3. Press the touch points on the card until the card connector is firmly seated on
the system board connector. You will hear a click when it is in place.
4. Using a Phillips #2 screwdriver, tighten the captive screws to secure the NDC
to the system board.
Figure 46
Installing the network daughter card
Remove and replace assemblies
Install the network daughter card 55
