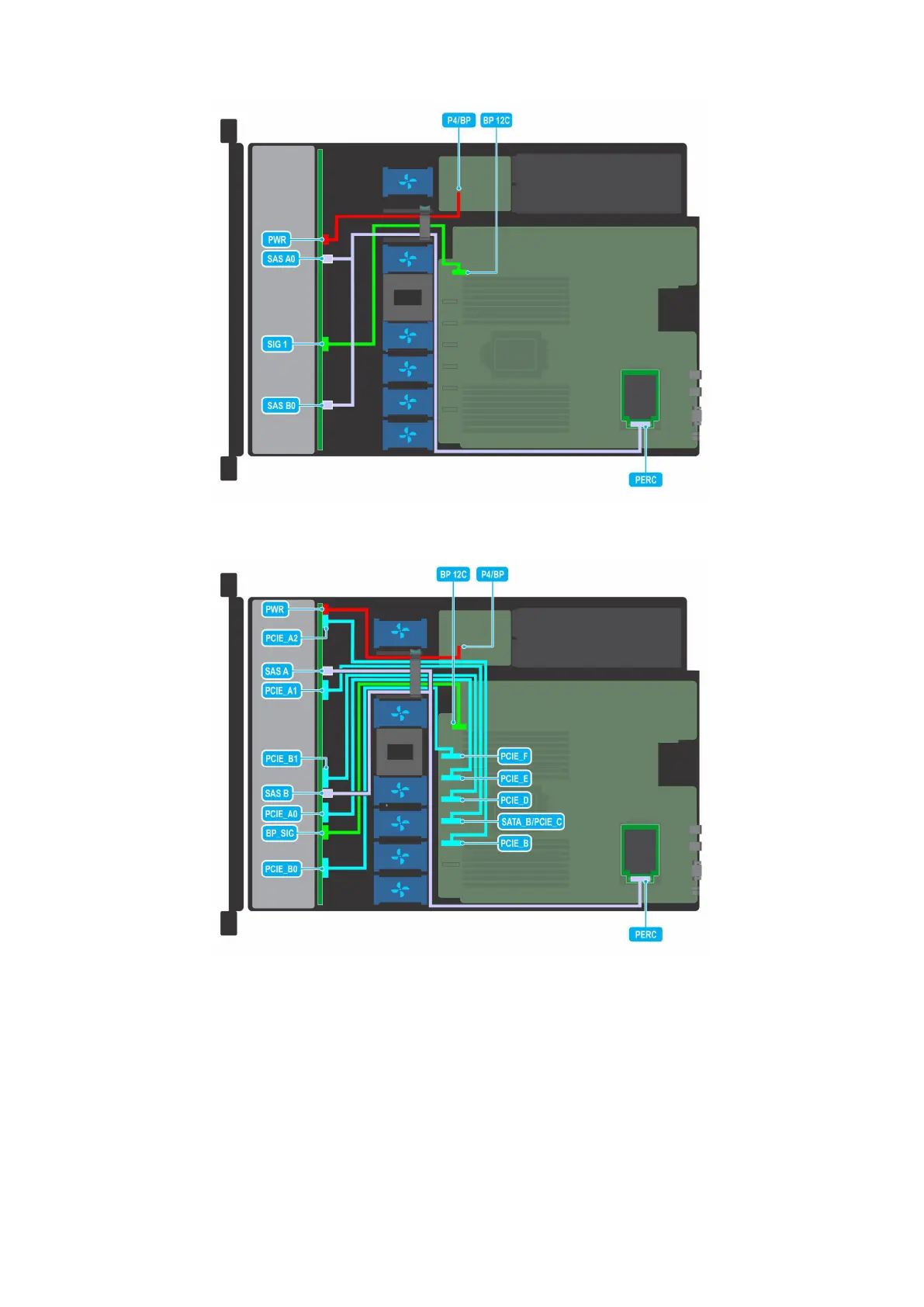

Figure 40. Cable routing - 8 x 2.5-inch drive backplane to the mini-PERC card
Figure 41. Cable routing - 10 x 2.5-inch drive backplane to the onboard controller (NVMe)
System memory
System memory guidelines
The PowerEdge R6515 system supports DDR4 registered DIMMs (RDIMMs) and load reduced DIMMs (LRDIMMs). System
memory holds the instructions that are executed by the processor.
Installing and removing system components
47
