Cable routing

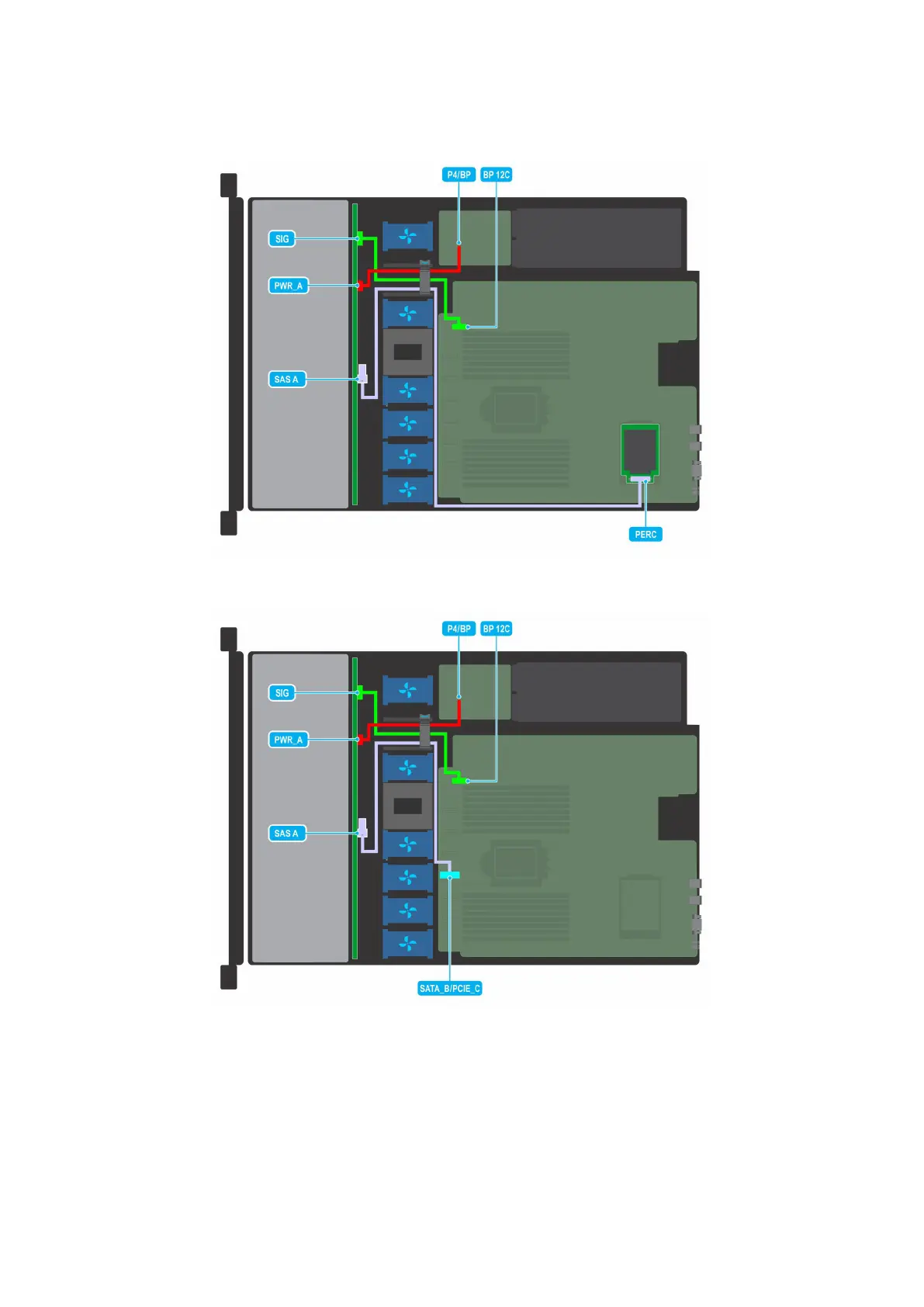

Figure 38. Cable routing - 4 x 3.5-inch drive backplane to the mini-PERC card
Figure 39. Cable routing - 4 x 3.5-inch drive backplane to the onboard controller
46
Installing and removing system components
