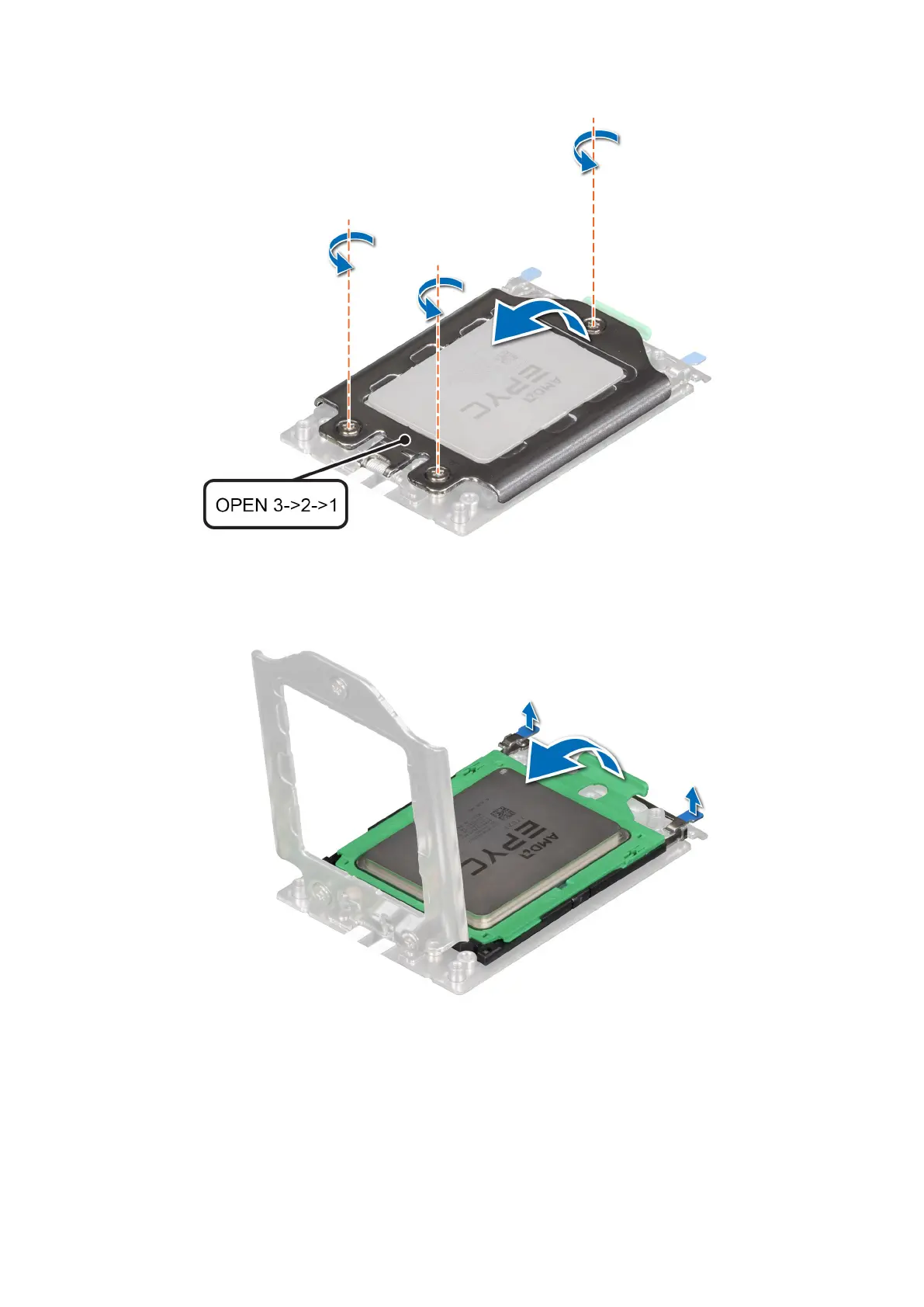

Figure 46. Removing screws on the force plate
2. Release the processor socket rail frame by lifting up the blue latches.
Figure 47. Lifting the rail frame
3. Holding the blue tab on the processor tray, slide the tray out of the rail frame.
Installing and removing system components
