Dell EMC PowerEdge R240 - Rear View of the System; Inside the System

Rear view of the system

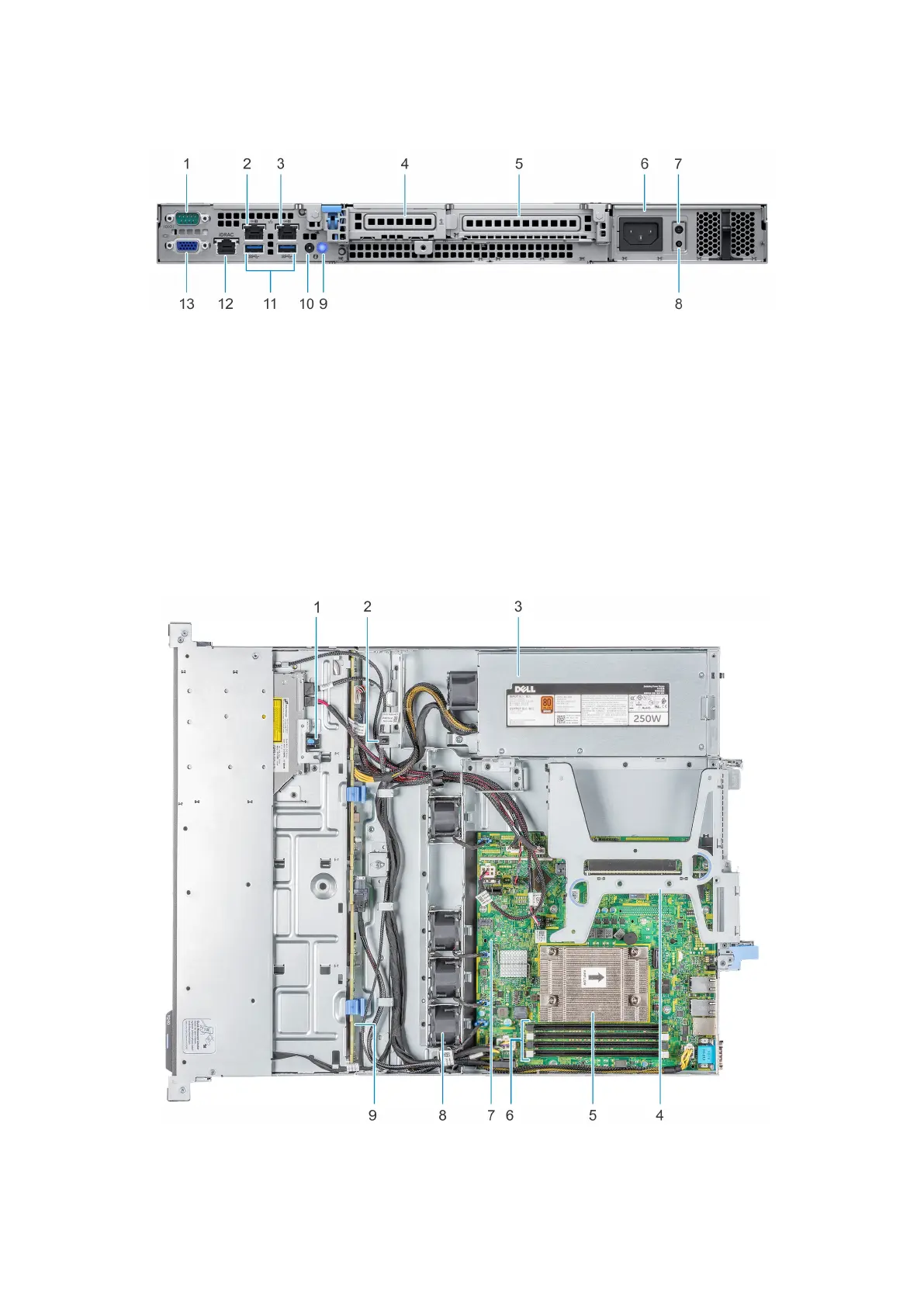

Figure 5. Rear view of the system
1. Serial port 2. NIC port (Gb 1)
3. NIC port (Gb 2) 4. Half-height PCIe expansion card slot
5. Full-height PCIe expansion card slot 6. Power supply unit
7. PSU Built-in Self Test (BIST) LED 8. PSU Built-in Self Test (BIST) button
9. System identification button 10. System status indicator cable port (CMA)
11. USB 3.0 ports (2) 12. iDRAC dedicated NIC port
13. VGA port
For more information about the ports and connectors, see the Technical Specifications section.
Inside the system
Figure 6. Inside the system - 4 x 3.5-inch drive system
1.
Optical drive 2. Intrusion switch
10 Dell EMC PowerEdge R240 system overview
