Dell EMC PowerEdge R240 - Cable Routing

Next steps
1. Connect the following cables to the backplane:
a. Backplane signal cable
b. Backplane power cable
c. PERC cable
2. Replace the drives.
3. Follow the procedure listed in the After working inside your system.
Cable routing

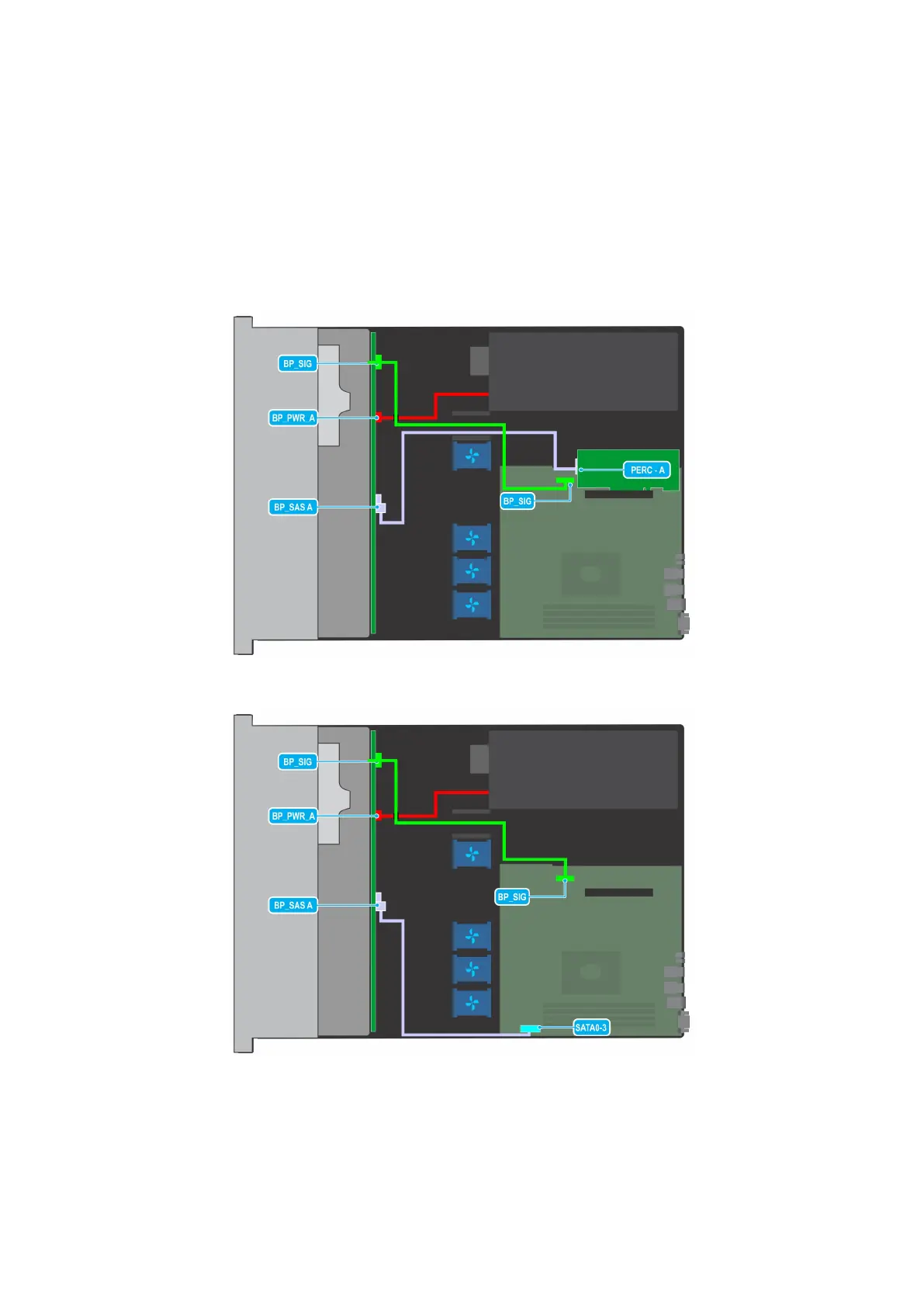

Figure 63. Cable routing - 4 x 3.5-inch drive backplane with PERC
Figure 64. Cable routing - 4 x 3.5-inch drive backplane with SATA
80
PowerEdge R240 installing and removing system components
