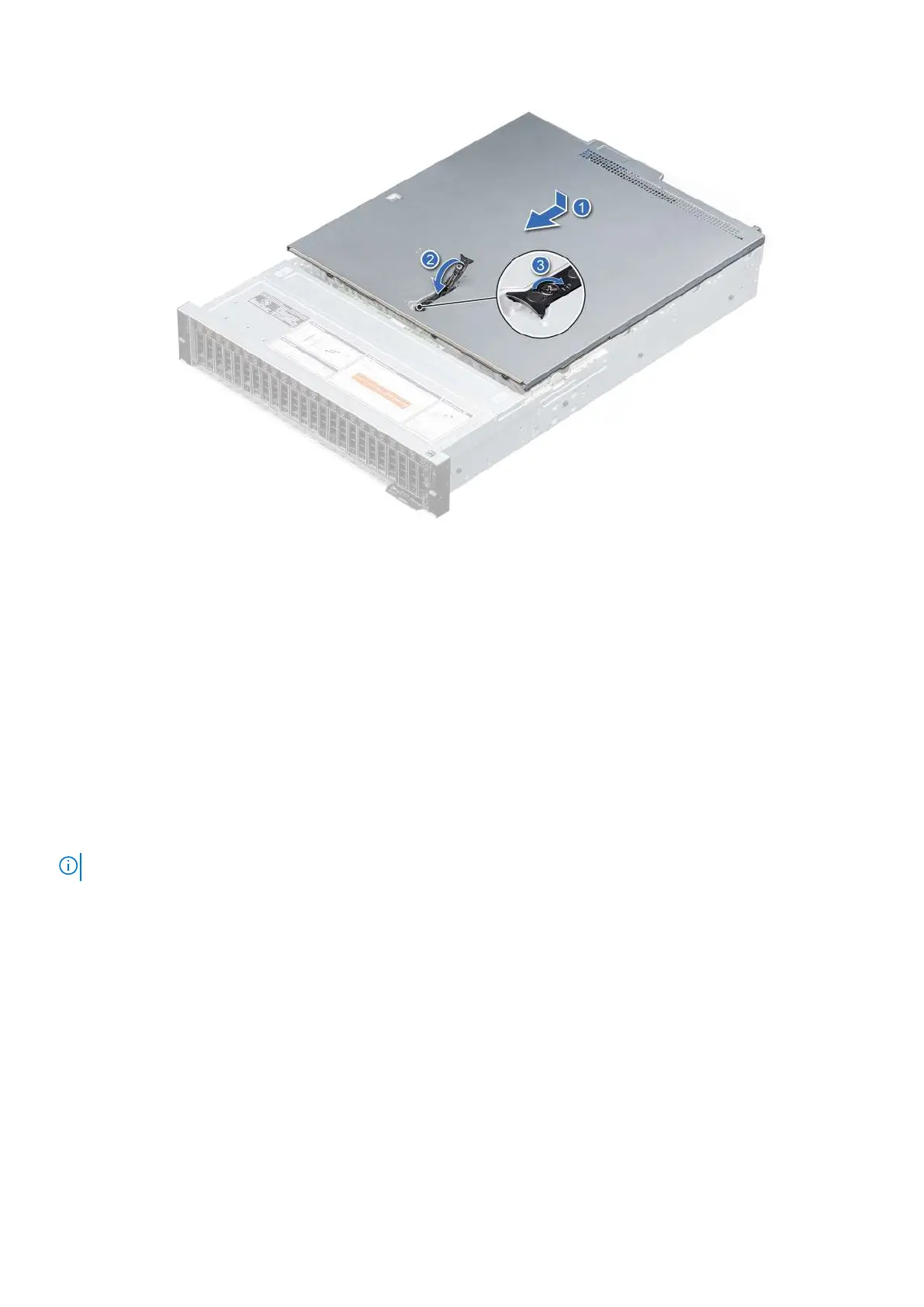

Figure 20. Installing the system cover
Next steps
Follow the procedure listed in After working inside your system on page 27.
Drive backplane cover
Removing the drive backplane cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
NOTE: Route the cables properly to prevent the cables from being pinched or crimped.
Steps
1. Press and push the blue touch points to disengage the drive backplane cover.
2. Remove the cover from the chassis.
Installing and removing system components
31
