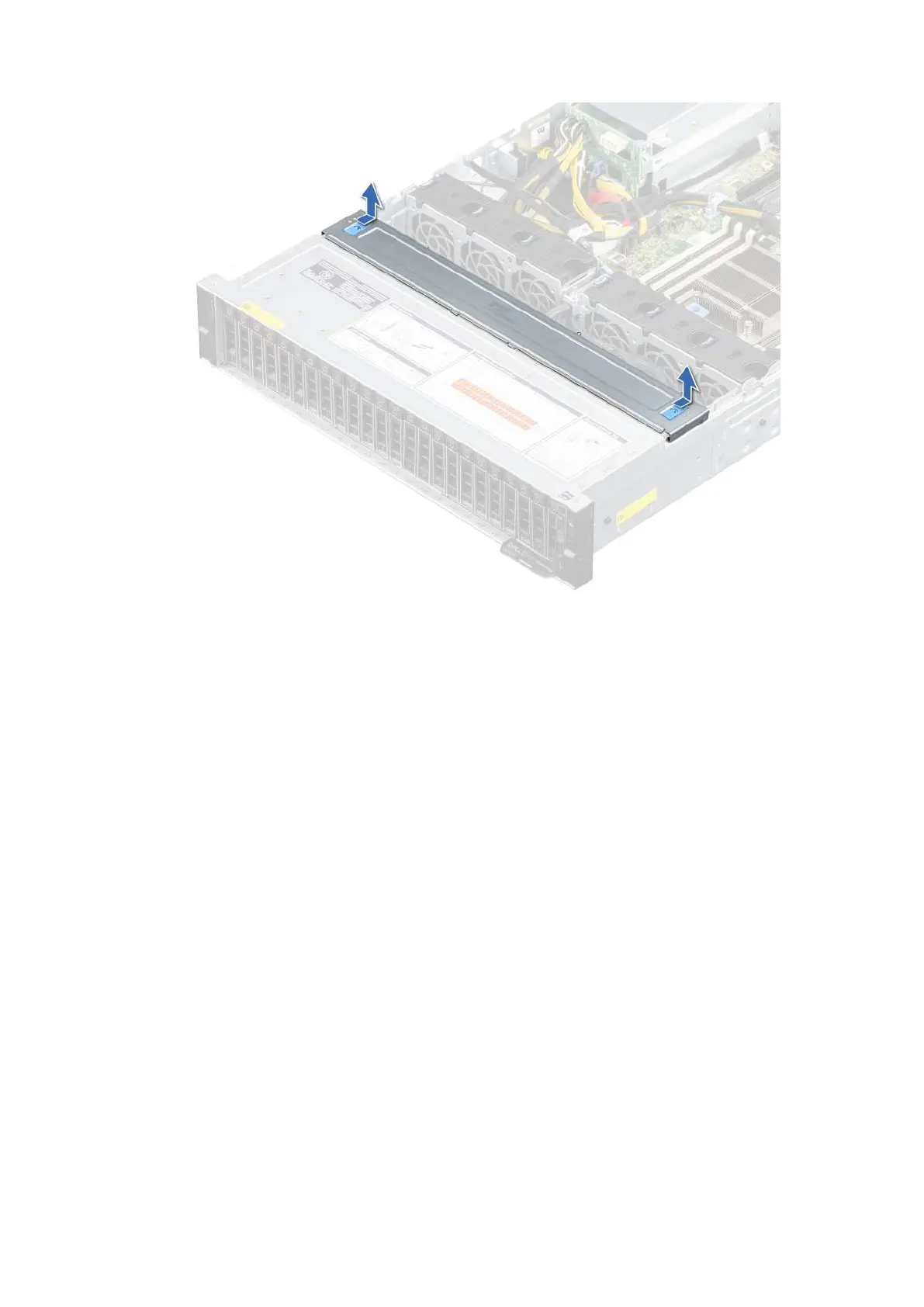

Figure 21. Removing the drive backplane cover
Next steps
1. Install the drive backplane.
Installing the drive backplane cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions on page 26.
2. Follow the procedure listed in the Before working inside your system on page 27.
Steps
1. Align the tabs on the drive backplane cover with the guide slots on the system.
2. Slide the cover until it is securely seated.
32
Installing and removing system components
