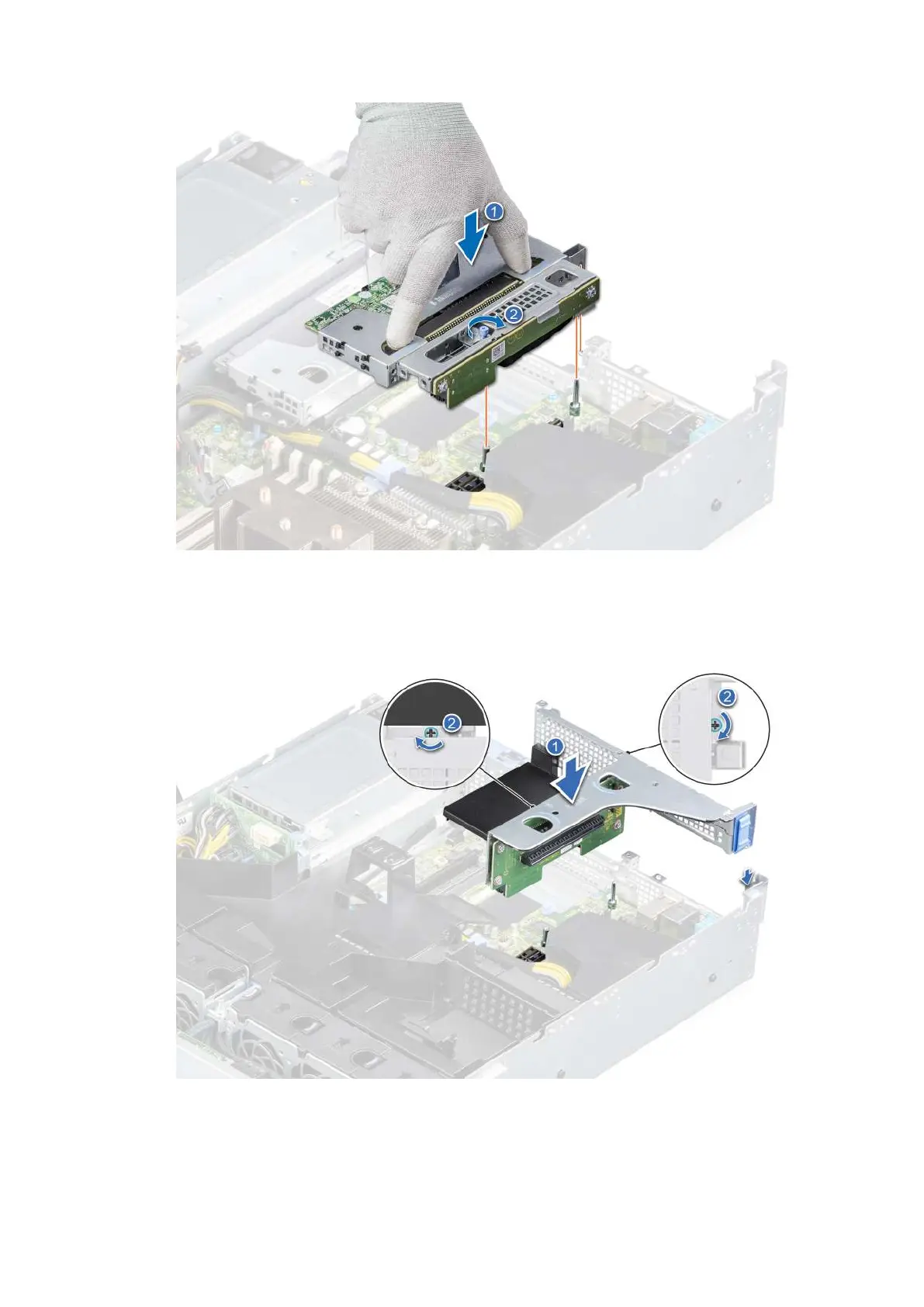

Figure 70. Installing the riser 1A
b. For the riser 1B, tighten the captive screws of the riser to fit the riser firmly to the system board and the chassis.
Figure 71. Installing the riser 1B
Installing and removing system components
75
