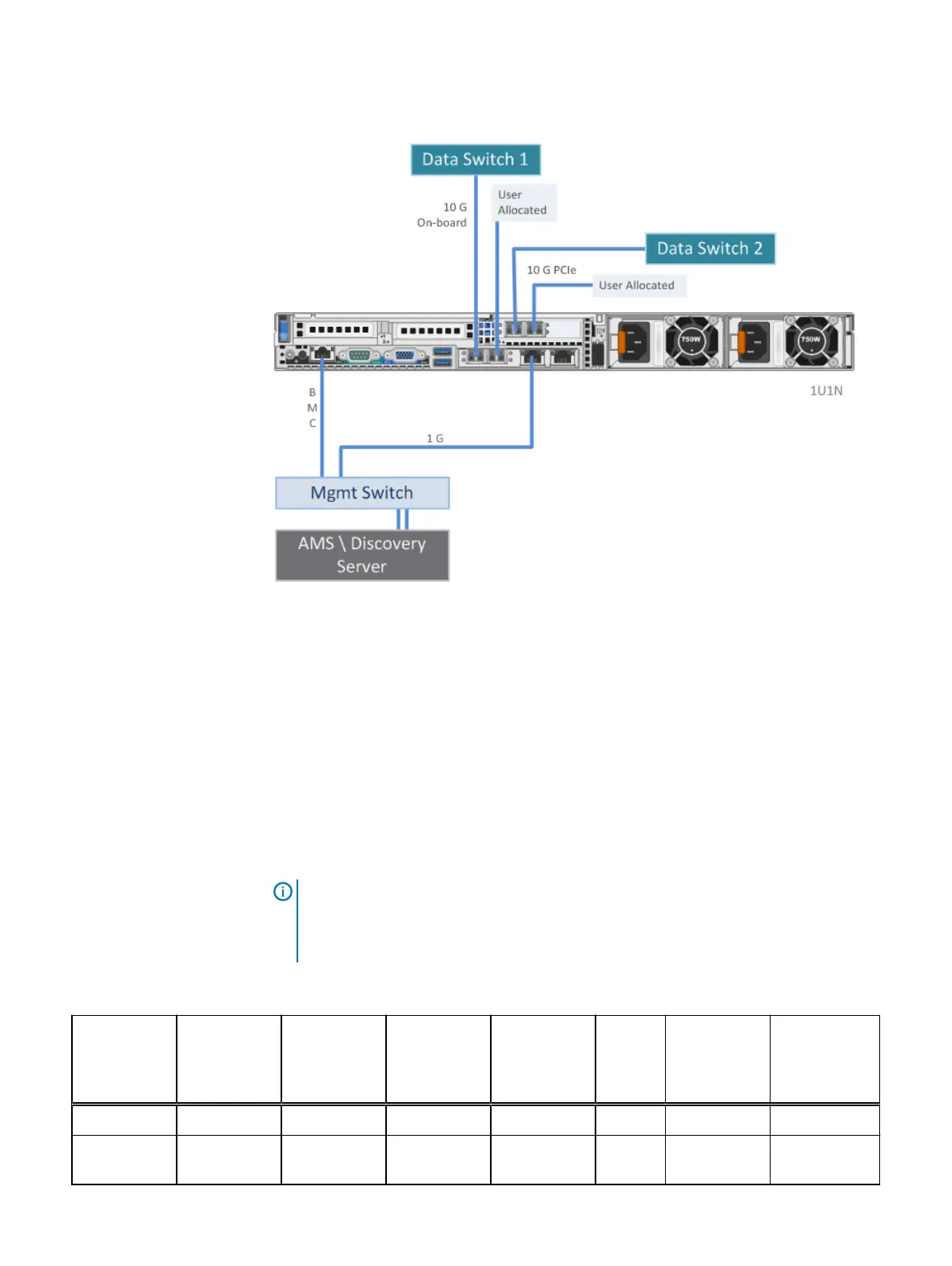

Figure 6 Single-node R630 (1U1N) server typical connection diagram
Server node port designations - ESXi R630/R730xd servers
For single-node servers in an ESXi-based system, connect the cables and configure
the system as shown in the following tables, depending on the server type and
architecture, when relevant.
The tables below show the most common correlation between the physical NIC port
location and the logical configuration in VMware. When using the same slot locations
as shown below, all settings but one setting are static and can be set by the AMS. The
vmnic number is the dynamic setting and is determined by the VMware bus scan and
boot logic. This number cannot be set persistently.
If you need to build your own table of reference, correlate the ESXi physical ports to
the vmnic logical port name.
Note:
In this AMS release, Advanced Deployment mode enables you to dynamically
select the port to be used in the server. It is recommended, but not mandatory,
that you use the VxFlex OS best practice ports. If the VLAN ID is defined, it must
also be configured on the switch side connected to the relevant selected port.
Table 7 R730xd single-node server configuration
Description iDRAC
Monitoring
VxFlex OS
Data1
VxFlex OS
Client
Network
Port1
VxFlex OS
Client
Network
Port2
VxFlex
OS
Data2
VxFlex OS
Managemen
t Network
Not in Use
Port iDRAC vmnic0 vmnic1 vmnic4 vmnic5 vmnic2 vmnic3
Physical Port
on node
iDRAC
(remote KVM)
Onboard 10G
(Left)
Onboard 10G
(Right)
PCI 10G
(Right)
PCI 10G
(Left)
Onboard
(Left)
Onboard 1G
(Right)
Architecture
