1 Basic Storage Array Information
This chapter includes basic information about PS6010 storage arrays.
Array Front and Back Panels
The front of a PS6010 array is shown in Figure 1-1 and Figure 1-2.

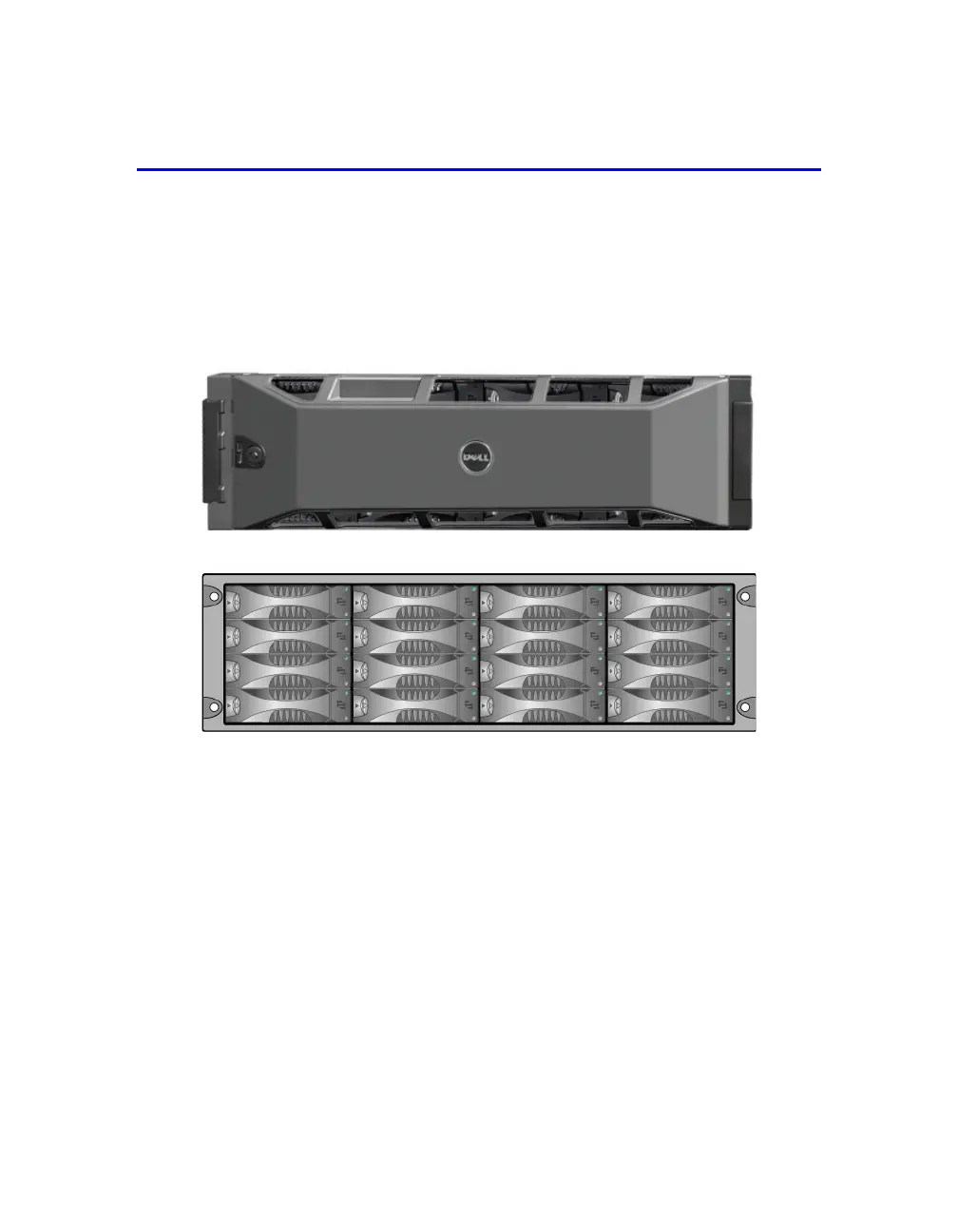

Figure 1-1: PS6010 Front Panel (with Bezel)
Figure 1-2: PS6010 Front Panel (without Bezel)
The disk drives are accessible from the front, after you remove the bezel. See
Chapter 2 for detailed information about disk drives.
The components on the back of a PS6010 are shown in Figure 1-3 and described
in Table 1-1.
