PS6010 Hardware Maintenance Maintaining Control Modules
3–13

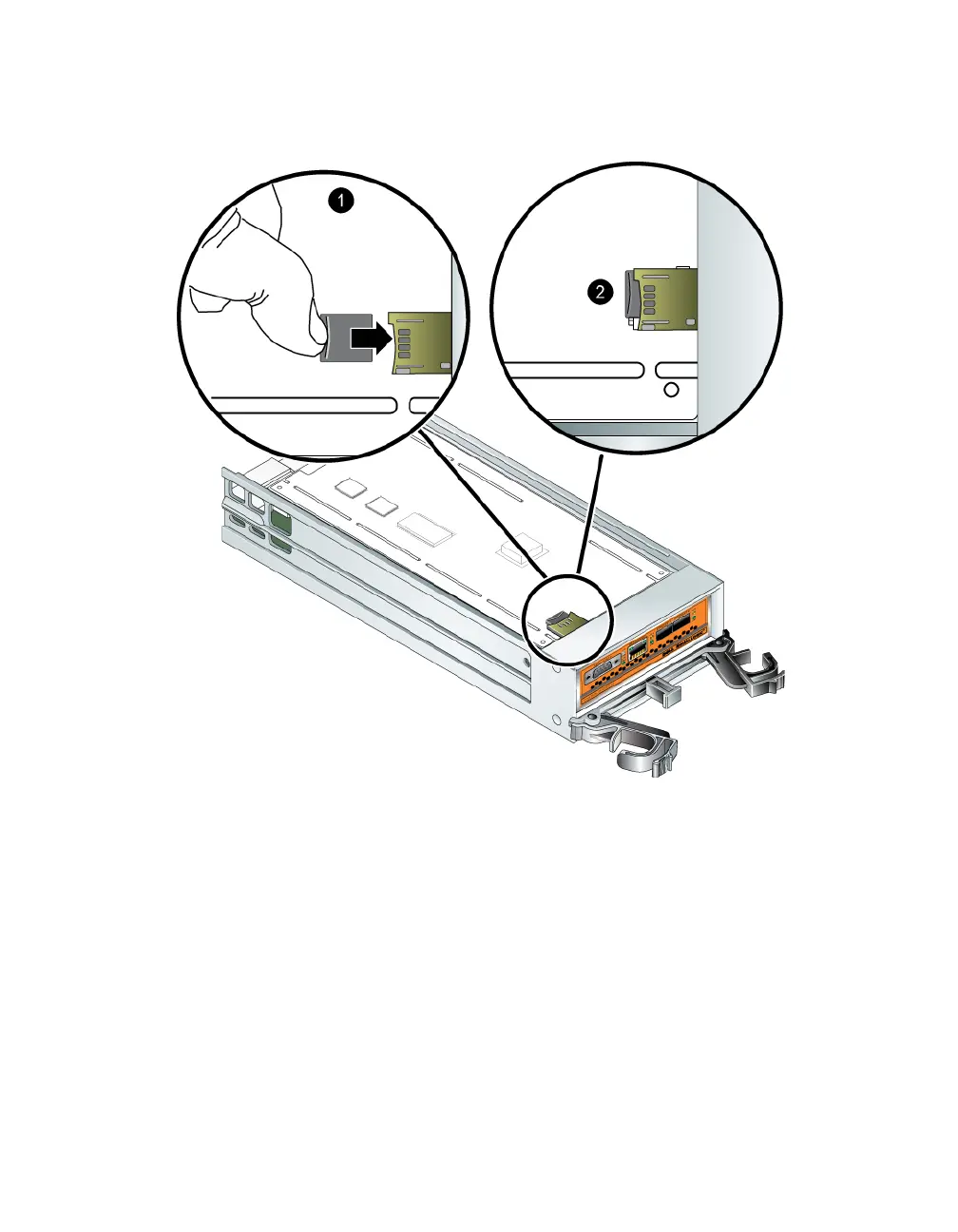

Figure 3-7: Inserting the MicroSD Card
3. Install the control module. See Installing a Control Module on page 3-8.
After you replace the microSD card, make sure the control module is operational.
See Interpreting Control Module LEDs on page 3-2.
Network Requirements and Recommendations
The minimum network configuration for a PS Series array consists of a
connection between Ethernet 0 on each control module and a computer or a
network switch. To increase performance and availability, configure multiple
network interfaces on an array and connect them to multiple switches.
