PS6010 Hardware Maintenance Maintaining Disks
2–8
1. Hold the disk drive by the plastic carrier, with the handle release button to the
left, and slide the disk drive partially into a slot.
2. Press the handle release button to release the handle. Open the handle.
3. With the handle at an angle, slide the disk drive completely into the slot,
simultaneously pushing in the handle until you hear a click. See Figure 2-7.

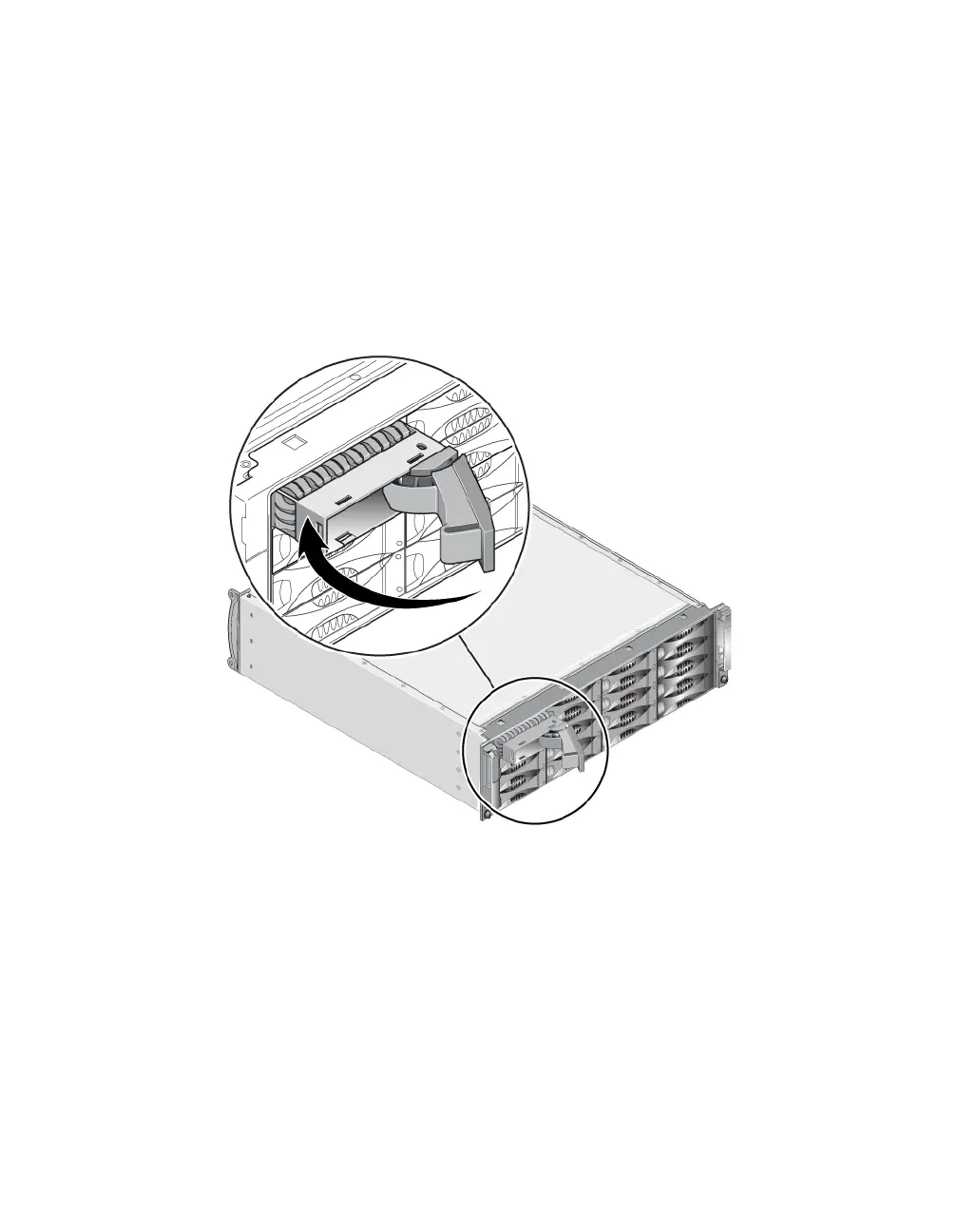

Figure 2-7: Closing the Disk Drive Handle
Verify that the new disk drive is operational by examining the LEDs on the front
panel, as described in Interpreting Disk Drive LEDs on page 2-2. In addition,
examine the GUI Member Disks window and the CLI
member select show
disks
command output.
Installing the Bezel
After you install all the replacement disk drives or blanks, re-install and lock the
bezel.
