PS6010 Hardware Maintenance Basic Array Information
1–3
For information about other array LEDs, see Interpreting Disk Drive LEDs on
page 2-2, Interpreting Control Module LEDs on page 3-2, and Interpreting the
LEDs on page 4-1.

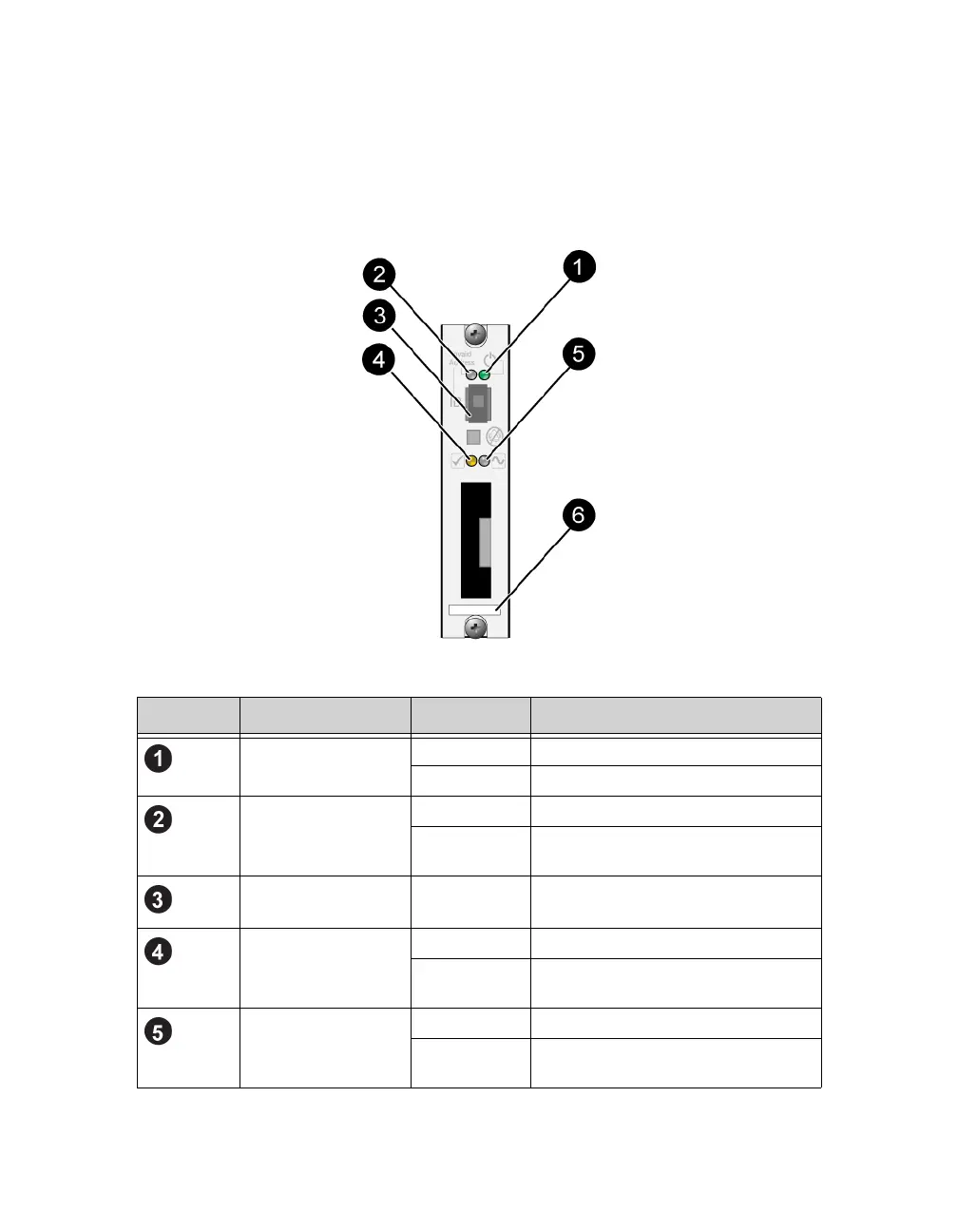

Figure 1-4: Operations Panel
Table 1-2: Operations Panel Descriptions
Callout Item Color Description
Power LED Off No power.
Green Power.
Array locator LED Off No power or normal condition.
Flashing
orange
Administrator enabled the array
locator function.
Identifier switch N/A Not used.
Warning condition
LED
Off No power or normal condition.
Flashing
orange
See Warning LED Status Conditions
on page 1-4.
Critical error
condition LED
Off No power or normal condition.
Flashing
orange
See Critical LED Status Conditions
on page 1-4.
