PS6010 Hardware Maintenance Maintaining Control Modules
3–18

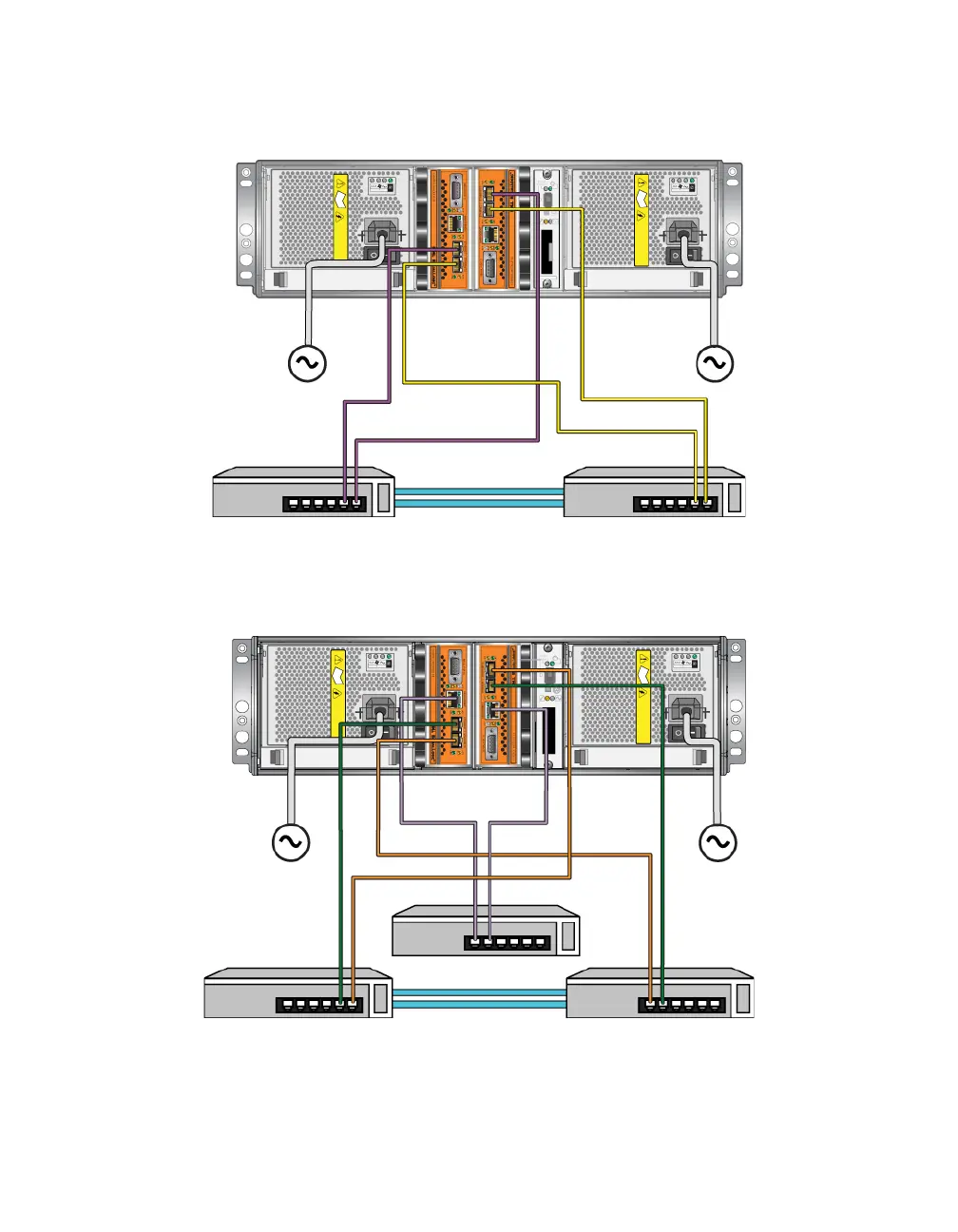

Figure 3-10: Configuration Without Management Network)
Figure 3-11 shows the recommended network configuration, with a management
network (on a 10/100Mbps switch).
Figure 3-11: Configuration With Management Network
