Dell Force10 MXL Blade Getting Started Guide

6 Hardware Overview
Hardware Overview
This section contains information about device characteristics and modular
hardware configurations for the MXL 10/40GbE Switch.
Internal Ports
The MXL 10/40GbE Switch provides 32 1/10-Gigabit Ethernet internal ports.
The internal ports are connected to server blades through the M1000e chassis
midplane. Each port can operate in either 1GbE or 10GbE mode. Internal
ports are numbered 1 to 32.
The MXL 10/40GbE Switch also provides an internal Ethernet interface—the
out-of-band (OOB) interface—which is dedicated to switch management.
The OOB interface is connected to the chassis management controller
(CMC) through the chassis midplane. Traffic on this port is segregated from
operational network traffic on the switch ports and cannot be switched or
routed to the operational network.
Front Panel

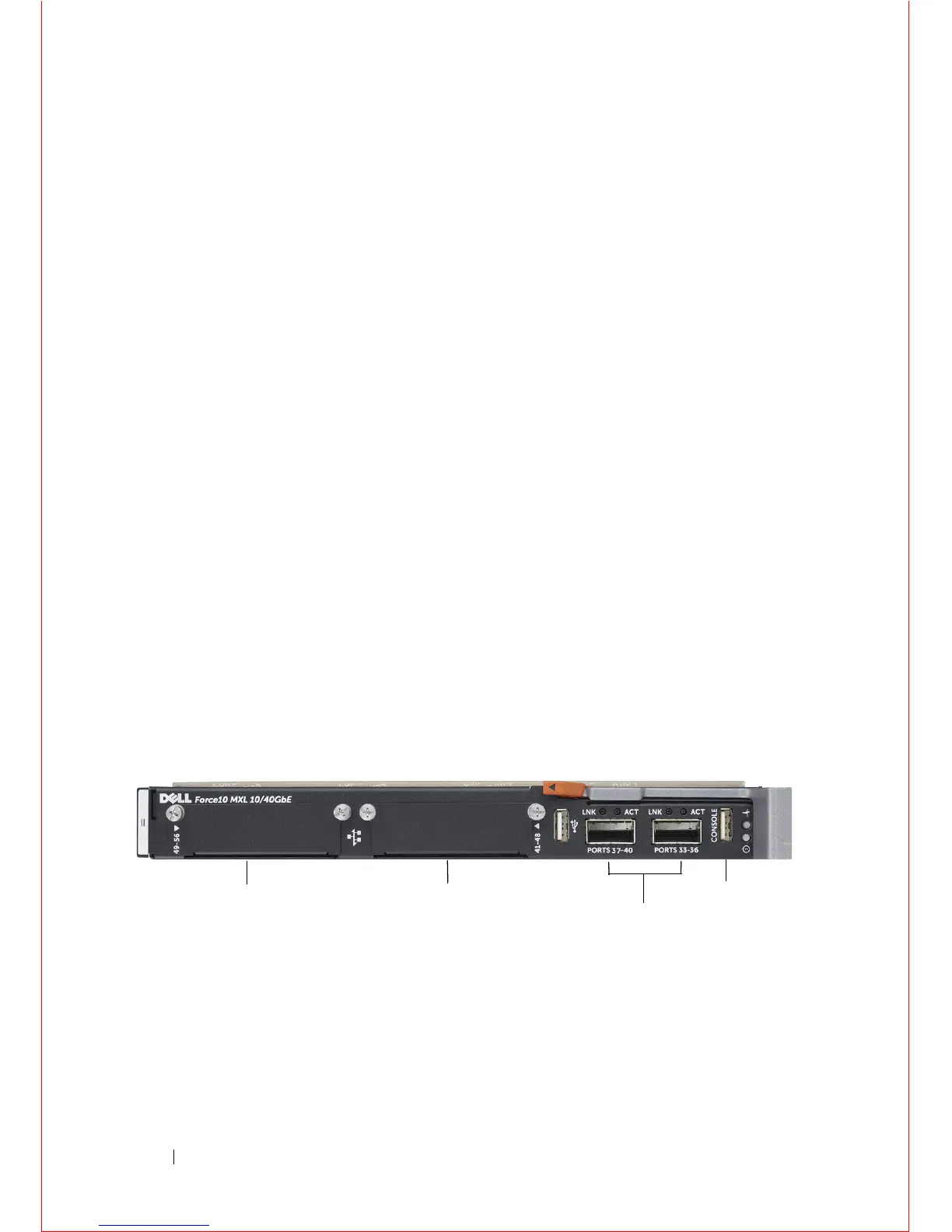

Figure 1-1 shows the MXL 10/40GbE Switch front panel:
Figure 1-1. MXL 10/40GbE Switch: Front Panel l
Expansion Slot 1
40GbE QSFP+ Ports
USB Console Port
Expansion Slot 0

Dell Force10 MXL Blade Specifications

General

Switching Capacity	1.28 Tbps
Forwarding Rate	952 Mpps
Product Type	Blade Switch
Latency	< 3 microseconds
Operating Temperature	0°C to 40°C (32°F to 104°F)
Redundancy	Yes
Management	CLI, SNMP, Web
Layer Support	Layer 2, Layer 3
Jumbo Frame Support	Up to 9216 bytes
Management Ports	1 x 10/100/1000 Mbps
Storage Temperature	-40°C to 70°C
Weight	4.5 kg (9.9 lbs)
