Dell Force10 MXL Blade Getting Started Guide

Hardware Overview 11
System and Port LEDs
The front panel of the MXL 10/40GbE Switch contains light emitting diodes
(LEDs) that provide information about the status of the switch (Figure 1-4).

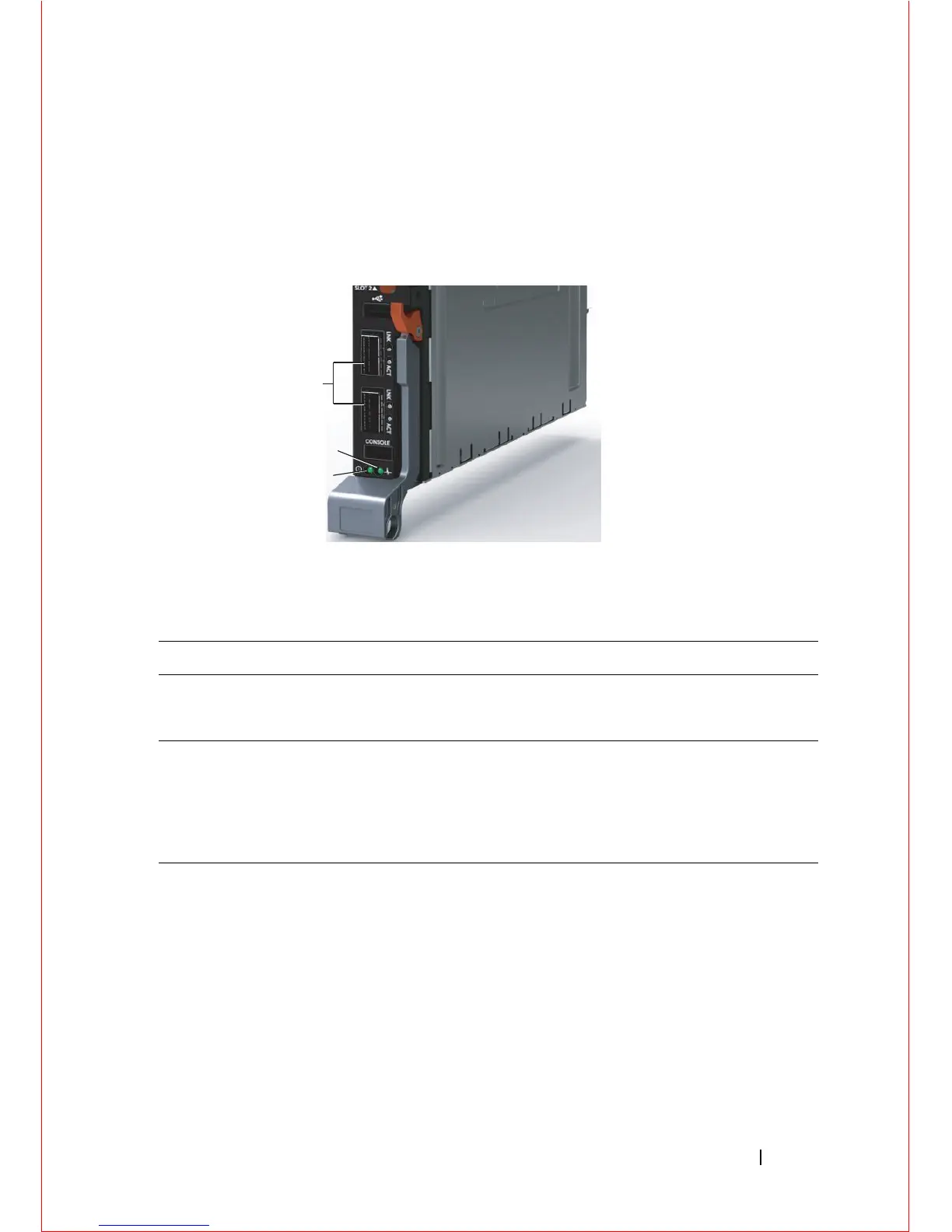

Figure 1-4. System LEDs on Front Panel
Table 1-1 describes system LED conditions.
Table 1-1. System LEDs
System LED Color Meaning
Power
Green Power is being supplied to the switch.
Off The switch does not have power.
Status
Blue The switch is operating normally as a standalone
switch or as a stack master.
Off The switch is not the stack master.
Amber A fault has occurred or the switch is booting.
System Status LED
System Power LED
40GbE Ports

Dell Force10 MXL Blade Specifications

General

Switching Capacity	1.28 Tbps
Forwarding Rate	952 Mpps
Product Type	Blade Switch
Latency	< 3 microseconds
Operating Temperature	0°C to 40°C (32°F to 104°F)
Redundancy	Yes
Management	CLI, SNMP, Web
Layer Support	Layer 2, Layer 3
Jumbo Frame Support	Up to 9216 bytes
Management Ports	1 x 10/100/1000 Mbps
Storage Temperature	-40°C to 70°C
Weight	4.5 kg (9.9 lbs)
