Latitude™ E6420 XFR Service Manual
Page 72

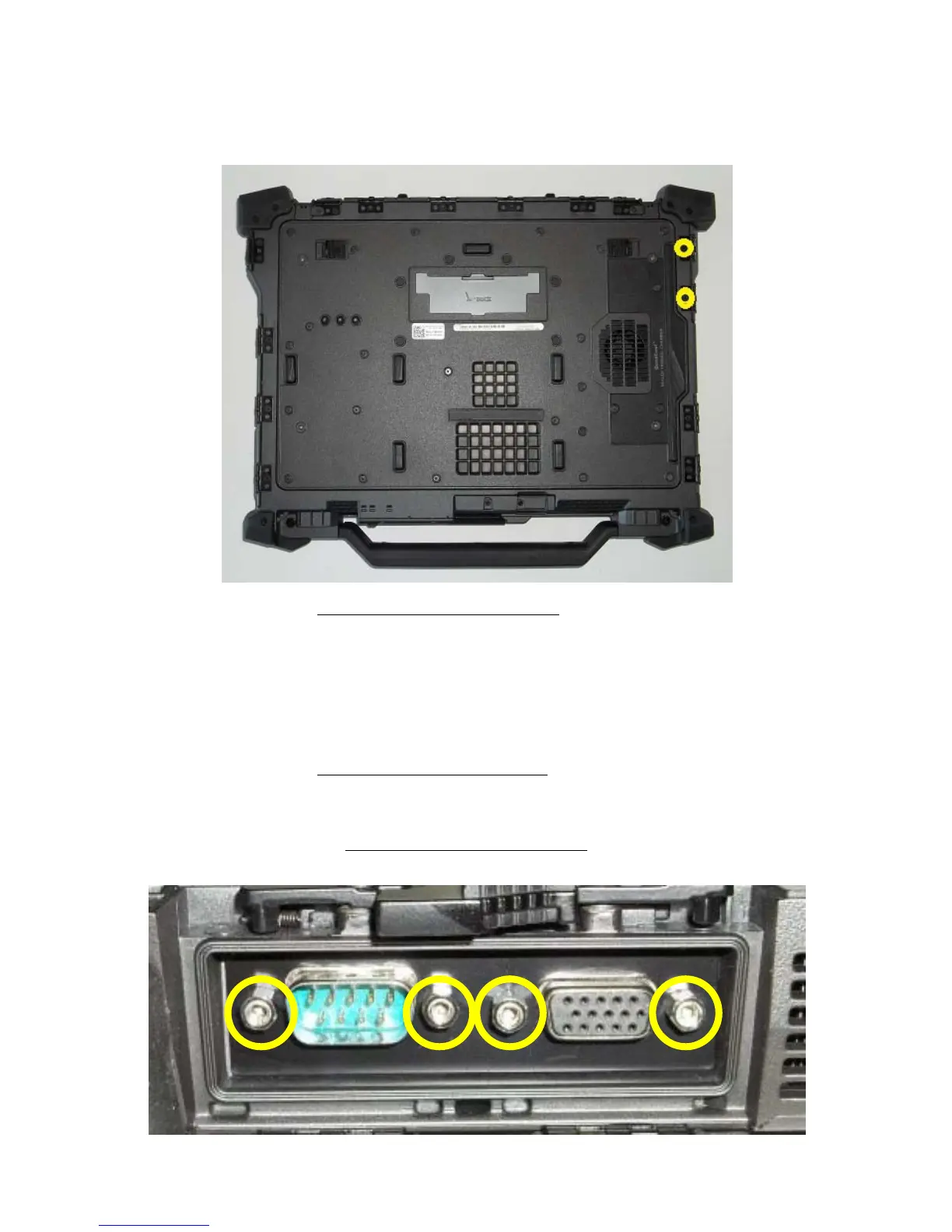

39.9 Removing the VGA/Serial Door
1. Follow the procedures in Before Working on Your Computer.
2. Open the door to relieve hinge pressure.
3. Remove the two M3 x 3-mm screws from the bottom of the base assembly.
39.10 Replacing the VGA/Serial Door
1. Insert door hinge onto assembly and align the hinge divots.
2. Replace the two M3 x 3-mm screws.
Follow the procedures in
After Working on Your Computer.
39.11 Removing the VGA Panel Cover
1. Follow the procedures in Before Working on Your Computer.
2. Open the VGA door.
