12 Expansion Modules for Dell Networking Switches
3.1.4 Dell Networking MXL

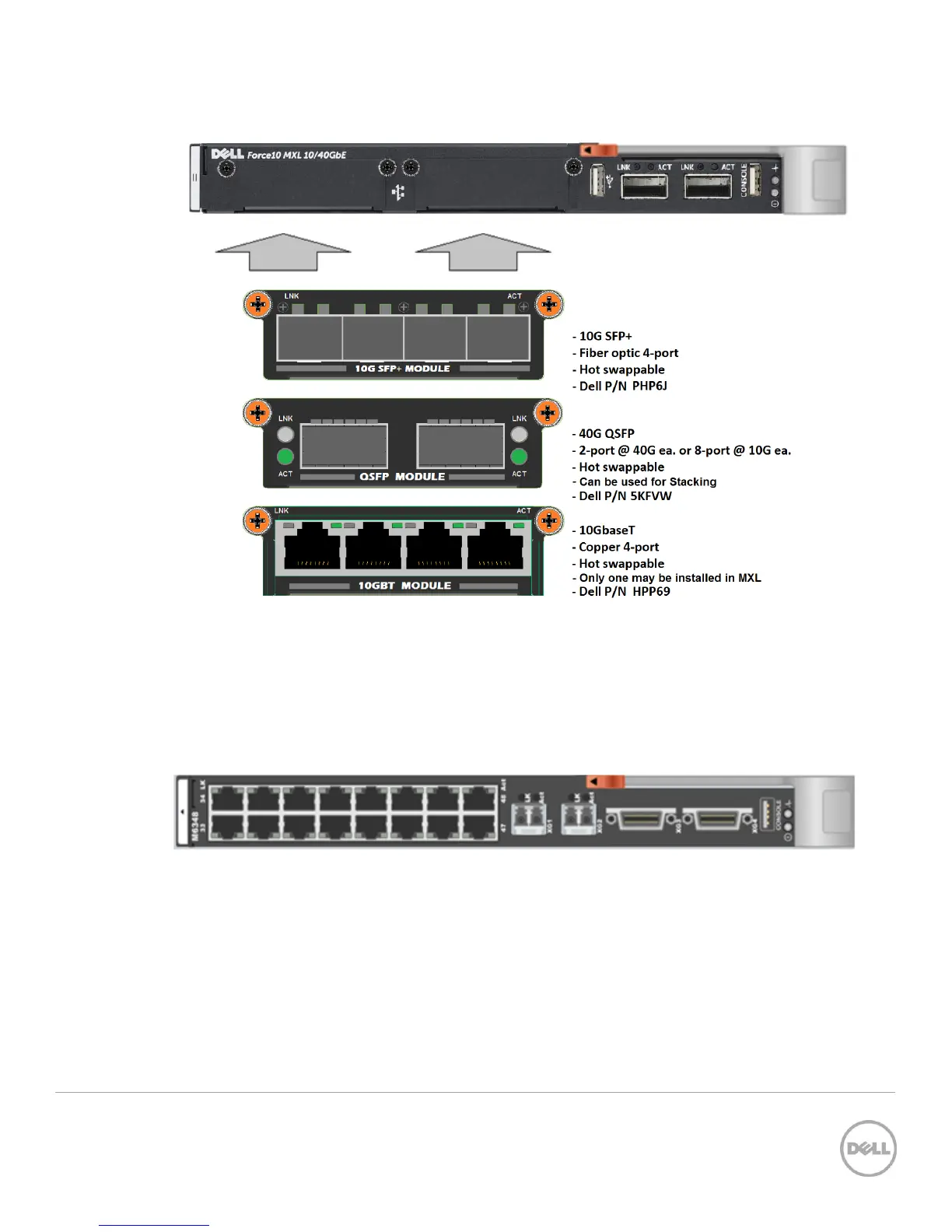

Figure 5 Dell Networking MXL Blade Switch (10/40G Ethernet) and Available Modules
The Dell Networking MXL supports the same expansion modules as the Dell Networking N40xx and 81xx series rack
mounted switches. Whenever a module is moved from an N40xx/81xx to an MXL or vice versa, a reload of the switch
is required for proper functioning of the module.
3.1.5 Dell Networking M6348
Figure 6 Dell Networking MXL Blade Switch (10/40G Ethernet) and Available Modules
The Networking M6348 has no expansion slots; therefore, it does not support any module. However, the front panel
provides sixteen 10/100/1000Base-T auto-sensing full-duplex RJ-45 ports, two 10G SFP+ ports, and two 10G CX4
ports. There are also 32 internal 1G ports that connect to the servers in the chassis. The stacking ports on the front
panel allow stacking between M6348 switches as well as between M6348 and Dell Networking 7000 series switches.

Dell Networking N3024 Specifications

General

Device Type	Switch
Enclosure Type	Rack-mountable
MAC Address Table Size	16, 000 entries
Power Supply	Internal power supply
Rack Units	1U
Operating Temperature	0 °C to 45 °C
Ports	24 x 10/100/1000
Routing Protocol	OSPF, RIP
Remote Management Protocol	SNMP 1
Features	VLAN support, QoS, IGMP snooping, port mirroring, DHCP snooping, ACLs
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab
Jumbo Frame Support	Yes
Storage Temperature	-40 °C to 65 °C
Operating Humidity	10 to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
