14 Expansion Modules for Dell Networking Switches
4.2 Dell Networking N4000 Series (N4032, N4032F,N4064, N4064P)
There are four different switch models in the Dell Networking N4000 series, each with one expansion module located
on the front of the chassis. The following modules are supported:
 4 x 10GBASE-T module
 4 x SFP+ module
 2 x 40G QSFP
The modules are hot-swappable, so modules can be installed without rebooting the switch. The yellow outlines in
Figure 8 show the expansion slot for each switch.

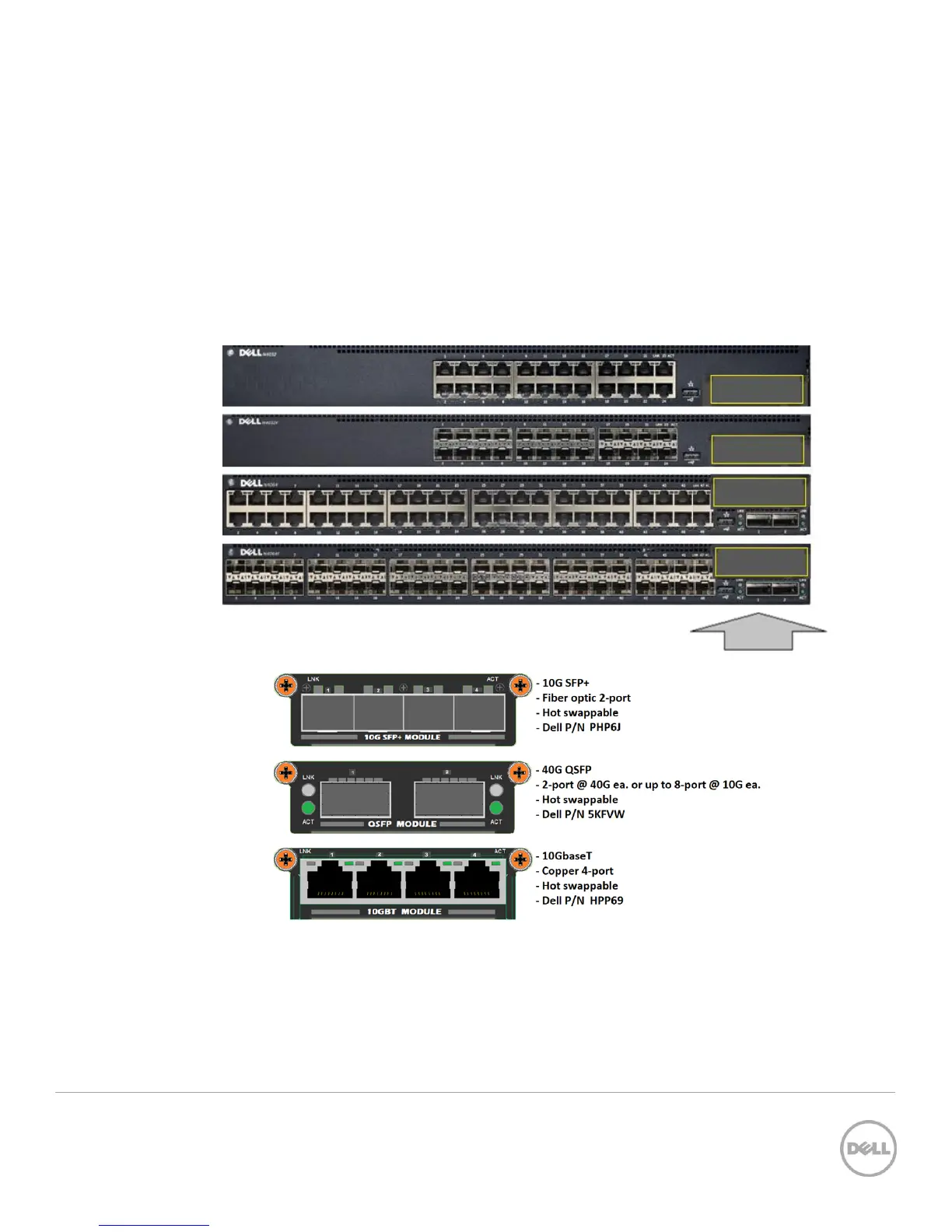

Figure 8 Dell Networking N4000 Series Switch (40/10G Ethernet) and Available Modules
Dell Networking N4000 switches support the same expansion modules as the Dell Networking 81xx and the MXL
modular switch.

Dell Networking N3024 Specifications

General

Device Type	Switch
Enclosure Type	Rack-mountable
MAC Address Table Size	16, 000 entries
Power Supply	Internal power supply
Rack Units	1U
Operating Temperature	0 °C to 45 °C
Ports	24 x 10/100/1000
Routing Protocol	OSPF, RIP
Remote Management Protocol	SNMP 1
Features	VLAN support, QoS, IGMP snooping, port mirroring, DHCP snooping, ACLs
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab
Jumbo Frame Support	Yes
Storage Temperature	-40 °C to 65 °C
Operating Humidity	10 to 90% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
