Dell Networking N4032 Getting Started Guide

16 Installation
Two-post Flush-mount Configuration
1 For this configuration, the castings must be removed from the front side of
each ReadyRails assembly. See
Figure 4, item 1 on page 16. Use a Torx™
driver to remove the two screws from each front flange ear (on the switch
side of the rail) and remove each casting. Retain the castings for future
rack requirements. It is not necessary to remove the rear flange castings.

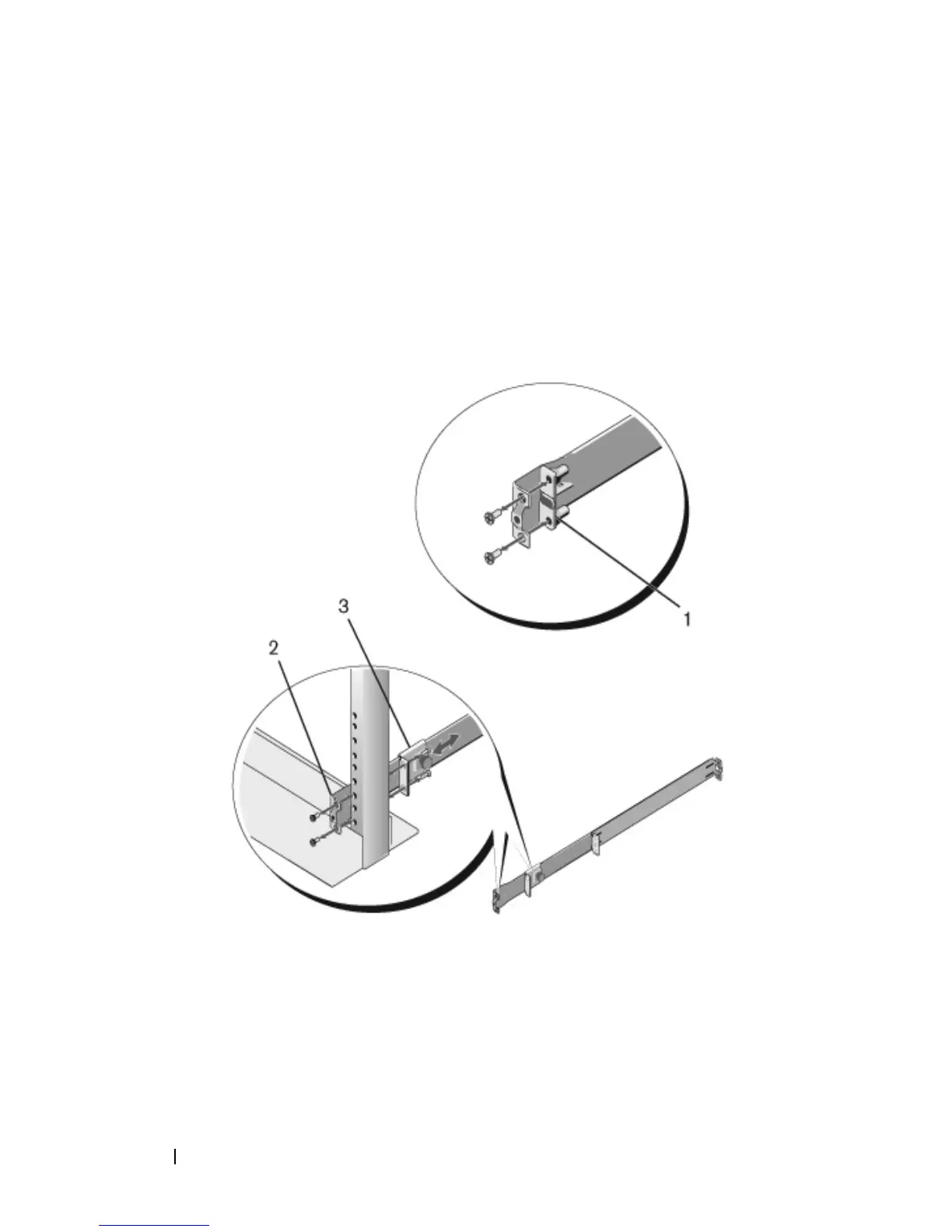

Figure 4. Two-post Flush-mount Configuration
2 Attach one rail to the front post flange with two user-supplied screws.
See Figure 4, item 2.

Dell Networking N4032 Specifications

General

Rack Units	1U
Layer	Layer 3
Manageable	Yes
Stackable	Yes
MAC Address Table Size	32, 000 entries
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C (32°F to 113°F)
Uplink Ports	8 x 10 Gigabit Ethernet 10GBASE-T
Power Supply	Dual, hot-swappable
Operating Humidity	10% to 90% non-condensing
