Dell Networking N4032 User Manual

19 Stacking Dell Networking Switches: N4032, N4032F, N4064, N4064F

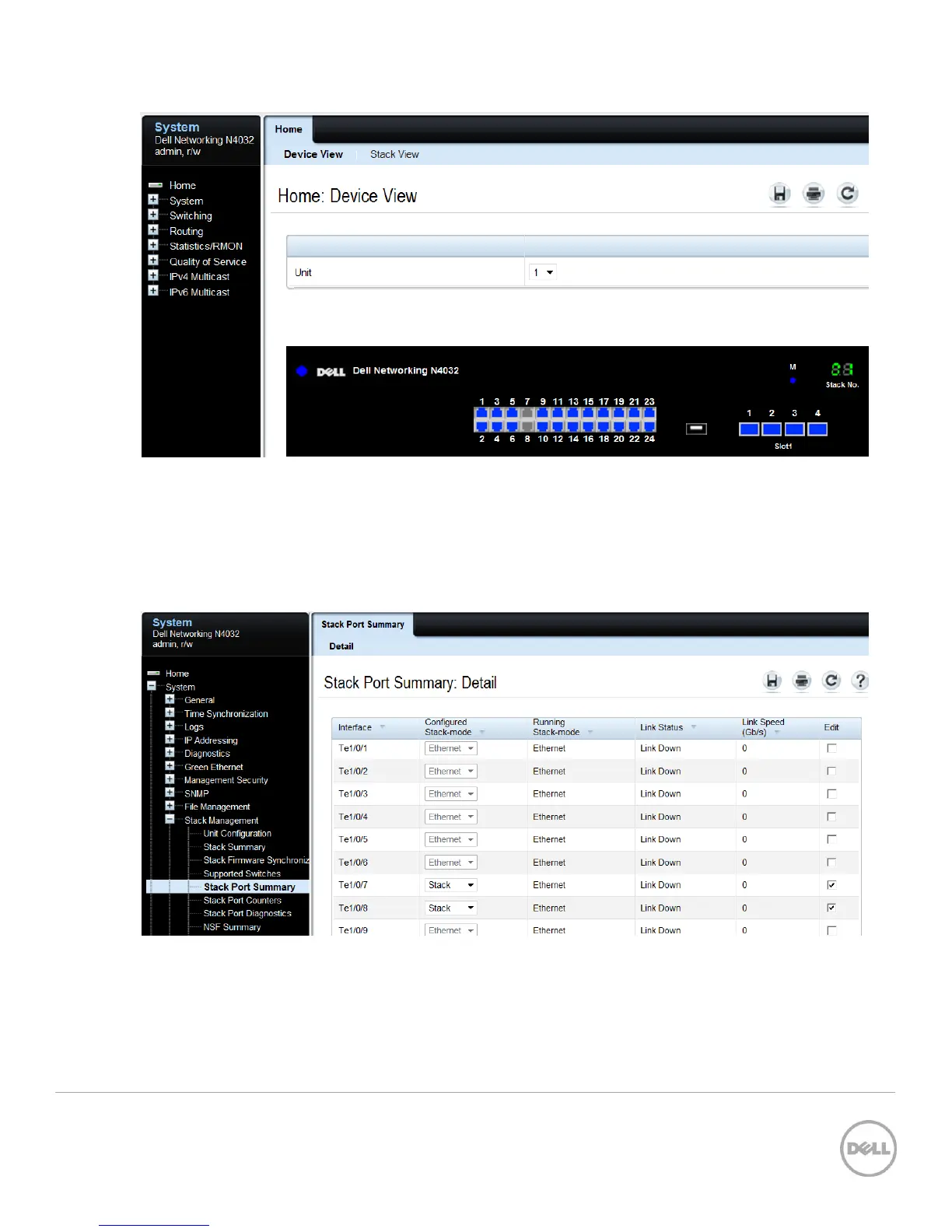

Click System > Stack Management > Stack Port Summary to bring up the next page used to select the
ports for stacking. For this example ports Te1/0/7 and Te1/0/8 are used.
Selecting the Edit check box activates the drop-down menu in the Configured Stack-mode column. Use
this menu to change port modes from Ethernet to Stack.
Click Apply. This will set the Configured Stack Mode to Stack , but the Running Stack Mode remains
Ethernet until the switch is reloaded as instructed below.

Dell Networking N4032 Specifications

General

Rack Units	1U
Layer	Layer 3
Manageable	Yes
Stackable	Yes
MAC Address Table Size	32, 000 entries
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 bytes
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C (32°F to 113°F)
Uplink Ports	8 x 10 Gigabit Ethernet 10GBASE-T
Power Supply	Dual, hot-swappable
Operating Humidity	10% to 90% non-condensing
